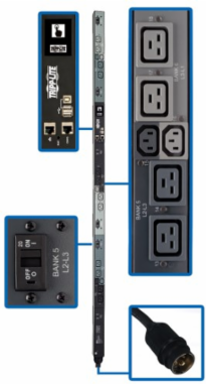

Tripp Lite PDU3EVNR6H50A Monitored Per-Outlet PDU, 3-Phase, 14.4kW, 208V, Hubbell CS8365C 50A Input, 18 Outlets, 0U
- MPN: PDU3EVNR6H50A
- UPC: 037332242259
- PPN: TRP-PDU3EVNR6H50A
CAD
$3344.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
14.4kW 208V 3PH Monitored Per-Outlet PDU - LX Interface, Gigabit, 18 Outlets, 50A CS8365C Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

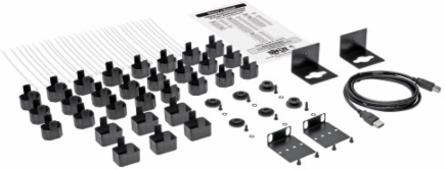

Features
- Built-in LX Platform interface
- Configuration cable
- (18) Plug-lock insert sleeves
- Rack-mounting hardware
- Spare mounting buttons
- PDUMVROTATEBRKT mounting bracket accessory
- Owner's manual
Documentation & Downloads
Specifications
Dimensions

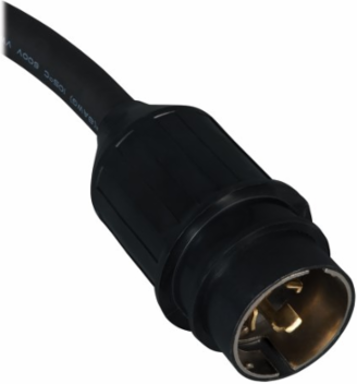

| PDU Plug Type | (1) Hubbell CS8365C 50A |
|---|---|
| Output Receptacle Details | Compatible with Eaton Tripp Lite Power Cords |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Unit Dimensions | 70.000 x 2.170 x 2.860 in |
| Communications Cable | USB B-to-USB A Configuration/Console Access cable |
| Input Cord Length | 6 ft |
|---|---|
| Output Receptacles | (6) C13; (12) C19 |
| PDU Form Factor | Vertical (0U) |
| Unit Weight | 14.13 lb |
Performance
| PDU Type | Monitored |
|---|---|
| PDU Input Voltage | 208 |
| Maximum Input Amps | 40A (Agency de-rated to 45A continuous) |
| Frequency Compatibility | 50 / 60 Hz |

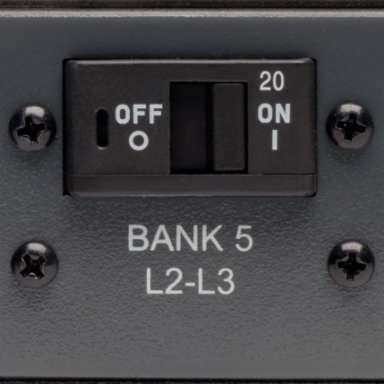

| Overload Protection | Six 20A circuit breakers, one per output load bank |

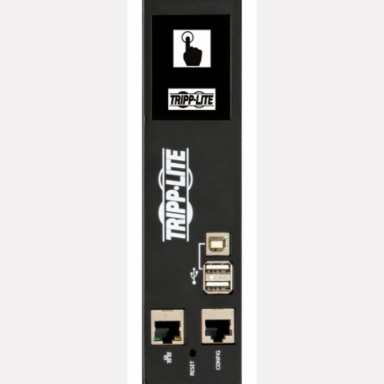

| Front Panel LCD Display | Touchscreen LCD reports network data, input phase data, load bank data, outlet data (amperage/wattage per outlet), configuration data, environmental data, and mobile access via QR code |
| LED Indicators | One LED for each output receptacle offers power availability information: Green (Power On, load bank capacity 80%), Red (Undervoltage), Red Flashing (Power Off/breaker trip), LED Off (Power Off); Network Interface LEDs report Network Activity (Green) and Link/Network Speed (Yellow) |
| Voltage Measurement Accuracy | +/-1% |
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| SNMP Compatibility | SNMP V1, V2c, V3 |
| Communications Interface | Pre-installed network card; RS-232; USB |
| Input Phase | 3-Phase |
|---|---|
| Recommended Electrical Service | Three-phase 50A 208V service |
| Output Capacity | 14.4kW (208V) total capacity; 23A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
| Output Nominal Voltage | 208V |
| Reported Load Segments | Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (23A combined max per banks B1+B4, B2+B5, B3+B6; 20A max per banks B1-B6); outlets color-coded by phase and load bank (L1-L2 black B1 & B4; L2-L3 dark-gray B2 & B5; L3-L1 light-gray B3 & B6) |
| Switches | LX Platform Interface: Recessed reset switch for interface reboot and factory reset |
| Current Measurement Accuracy | +/-1% |
| Power Measurement Accuracy | +/-1% |
| Storage Temperature Range | -22 to 140°F (-30 to 60°C) |
| Operating Elevation | 0-10000 ft (0-3000 m) |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit) |
| PowerAlert Software | LX Platform Interface: PowerAlert Device Manager |
Material
| Material of Construction | Metal |
|---|
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
