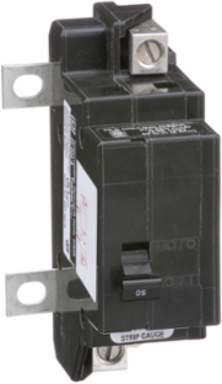

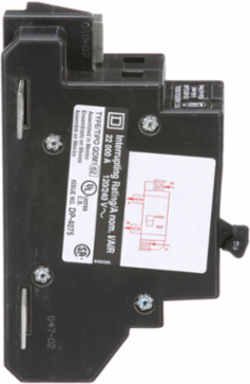

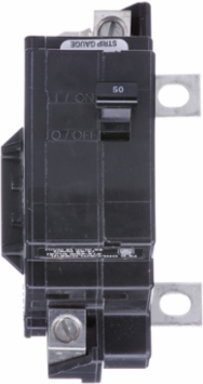

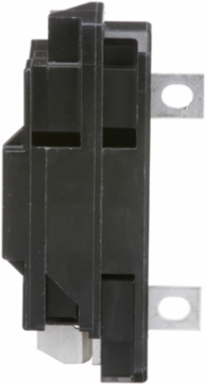

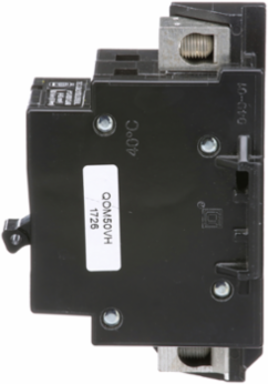

Square D QOM50VH Main breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, bolt on mount
Square D QOM50VH Main breaker, QO, 50A, 2 pole, 120/240VAC, 22kA, bolt on mount
- MPN: QOM50VH
- UPC: 785901879596
- PPN: SCH-QOM50VH
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$139.22/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 50A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Complementary
- Height
- 129 mm
- Tightening Torque
- 6-6 N.m 4-65 mm² AWG 12...AWG 2/0)
- Awg Gauge
- AWG 4...AWG 2/0 aluminum/copper
- Depth
- 127 mm
- Network Number Of Phases
- 1 phase
- Product Destination
- QO load center || Homeline load center
Breaking Capacity22 kA 120/240 V AC 50/60 Hz || 10 kA
Product Destinationload center QO || load center Homeline
Width88 mm
Loadcentre TypeMain Breaker
Net Weight0.567 kg
Specifications
- Mounting Mode
- bolt-on
- Range Of Product
- QO
- Electrical Connection
- lugs
- Product Or Component Type
- circuit breaker
- [Ue] Rated Operational Voltage
- 120/240 V AC
Circuit Breaker Typestandard
Poles Description2P
[In] Rated Current50 A
Device Short NameQOM1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
