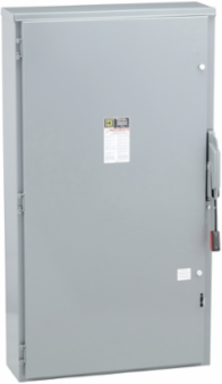

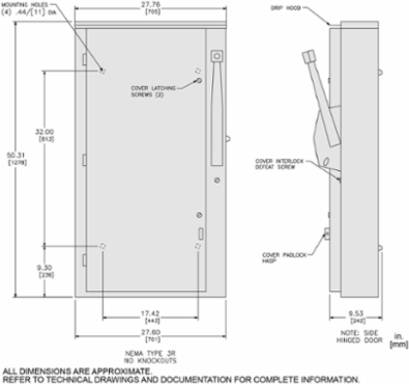

Square D CH366R Heavy Duty Fusible Safety Switch 600A 600VAC/VDC 3 Poles NEMA 3R
- MPN: CH366R
- UPC: 785901181835
- PPN: SCH-CH366R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric CH366R Heavy Duty Fusible Safety Switch is engineered to provide reliable disconnection for high-capacity systems with its robust 600A rating for both AC and DC applications up to 600 volts. Featuring a three-pole configuration, this switch is designed to ensure safe and easy maintenance while protecting electrical circuits from overload situations. Ideal for use in harsh environments, its NEMA 3R enclosure offers excellent protection against dust and water, making it a critical component for any industrial power distribution setup. This safety switch exemplifies durability and functionality, meeting the demanding needs of today's power systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth10.13 in
Complementary Attributes
- Line Rated Current
- 600 A
Maximum Horse Power Rating500 hp at 600 V AC 50/60 Hz for 3 phase motors400 hp at 480 V AC 50/60 Hz for 3 phase motors200 hp at 240 V AC 50/60 Hz for 3 phase motors
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 200 hp at 600 V AC 50/60 Hz for 3 phase motors150 hp at 480 V AC 50/60 Hz for 3 phase motors75 hp at 240 V AC 50/60 Hz for 3 phase motors50 hp at 600 V DC, 50 hp at 250 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 196 kg CO2 eq., 196.04091251149475
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 412 kg CO2 eq., 412.10623842709794
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- none
- Electrical Connection
- lugs
- Number Of Poles
- 3
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 2 044 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 90
- Width Nominal
- 27.88 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]204.38751927938742, 204 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1951907185311969, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 231 kg CO2 eq., 1230.7965359690943
Local Publishable Date2026-05-08
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge3/0 AWG...500 kcmil copper or aluminium
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv6.2.4
Tightening Torque550-550 lbf.in 177-253 mm²550-550 lbf.in 53.49-152.0 mm² (1/0 AWG...300 kcmil)
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal50.31 in
Certificate AgencyCSA
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)80.74 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint2043.5263969056055
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R galvannealed steel
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2503029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
