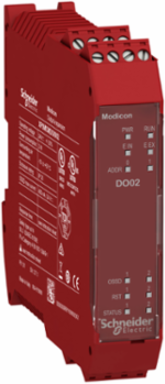

Modicon MCM Safe Output Expansion Module, 2 Digital Output Pairs, IP20
Modicon MCM Safe Output Expansion Module, 2 Digital Output Pairs, IP20
Schneider Electric

Schneider Electric XPSMCMDO0002 Modicon MCM Safe Output Expansion Module, 2 Digital Output Pairs, IP20

  • MPN: XPSMCMDO0002
  • PPN: SCH-XPSMCMDO0002

CAD

$716.38

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Modicon MCM Safe Output Expansion Module, 2 Digital Output Pairs, IP20

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Italy, United States
Depth22.5 mm

Complementary Attributes

Integrated Connection Type
backplane expansion bus

Important Information Attributes

Cable Cross Section
0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end
Local Signalling
1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 2 LEDs green/red OUT output status, 2 LEDs yellow RST restart signal, 2 LEDs yellow STATUS output status
Safety Reliability Data
DC > 99 %, MTTFd < 100 years high, PFHd = 3.16E-9 1/h
Certificate Agency
TÜV, cULus, RCM
Carbon Footprint Of The Distribution Phase [A4]
0.030948, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.2 kg CO2 eq., 0.19417
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
108 kg CO2 eq., 107.71
Local Publishable Date
2026-04-30
Stocking Flag
Y
Device Type
PLC System - PLC Component
Traceability
Yes
Manufacturing Carbon Footprint
6.6725
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2403017EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1847
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Device Short Name
XPSMCM
Function Of Module
monitoring safety actuators discrete output
Insulation
250 V AC between power supply and housing IEC 61800-5-1
Mounting Support
omega 35 mm DIN rail EN 50022
Overvoltage Category
II
Power Dissipation In W
3 W
Product Or Component Type
safe output expansion module
Range Of Product
Preventa Safety automation
Service Life
20 year(s)
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
115 kg CO2 eq.
Pep Code
ENVPEP2403017EN
Pep Verification Date
2023-11-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To monitor safety sensor signals and provide data to a CPU at 3W during 10 years with a 100% use rate.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
262.8
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal
114.5 mm
[Us] Rated Supply Voltage
24 V - 20...20 % DC
Package Weight(Lbs)
228.0 g
Warranty (In Months)
18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
107.57
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
107.71
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
2.0211
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
2.3969
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
82.853
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
1160
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
-2.5872
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
0.1306
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
71.064
Materials For Recycling (Kg) Installation [A5]
0.1067
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
15.498
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
1.0492
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
2.6031
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
2.1661
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
2.6104
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
4.9504
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
0.2135
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
2.6031
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
2.0211
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
2.3969
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
1.351
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
-1.9206
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
526.96
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
1.1497
Water Use (M3 Eq) Operational Energy Use [B6]
3.5823
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Safety LevelPL e, SIL3, can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.26422, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 6.6725
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Use Carbon Footprint107.71
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Product Kit IdentifierN
Electrical Connectionscrew terminal
Group Of Channels2 dual channel load 400mA/output
Load Typeresistive load
Number Of Terminal Blocks4
Power Consumption In W3 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; IT
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]6.6028
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]6.6725
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]74.277
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2744.2
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-2.2002
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]1.3251
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]96.089
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]6.6438
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.1432
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]160.15
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]1.5316
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-2.7815
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle2.6031
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]79.228
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3271.2
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-2.9711
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]526.96
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.6031
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]71.674
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2744.2
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.2002
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.351
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.5995
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]0.2135
Water Use (M3 Eq) Manufacturing [A1-a3]1.9725
Water Use (M3 Eq) End Of Life [C1-c4]48.957

Environment Attributes Main

Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Ambient Air Temperature For Operation
-10-55 °C-10-55 °C
Circularity Profile
ENVEOLI2403017EN
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Relative Humidity
10-95 %
Pep Verification Date
2023-11-01
Psr Version
0
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint114.87183799999998
Ambient Air Temperature For Storage-20-85 °C-20-85 °C
Environmental DisclosureENVPEP2403017EN
Ip Degree Of ProtectionIP20 enclosure)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2403017EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
safe output expansion module
Range Of ProductPreventa Safety automation

ETIM

ETIM 8
EC001449
ETIM 9EC001449

Output Attributes

Discrete Output Current
400 mA, 100 mA
Discrete Output Type
PNP
Output Load
60 Ohm
Number Of Outputs2 safety outputs OSSD contactor/drive connection, 2 configurable diagnostic connection, 2
Discrete Output Voltage24 V DC

Input Attributes

Discrete Input Type
isolated
Number Of Inputs
2 digital external device monitoring
Discrete Input Voltage24 V DC
