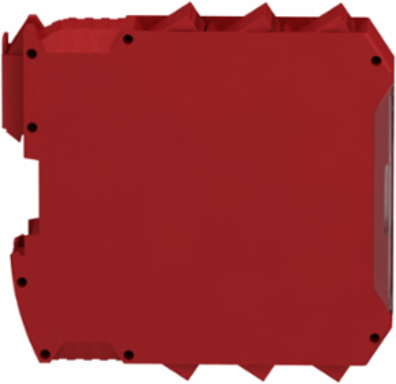

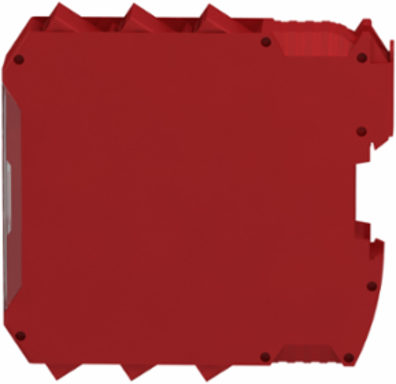

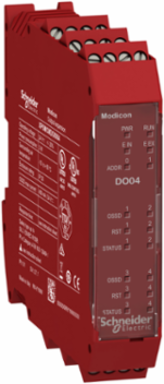

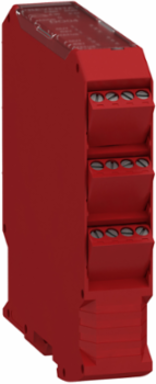

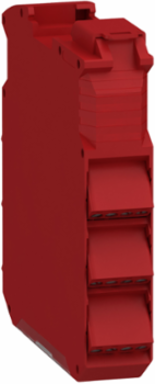

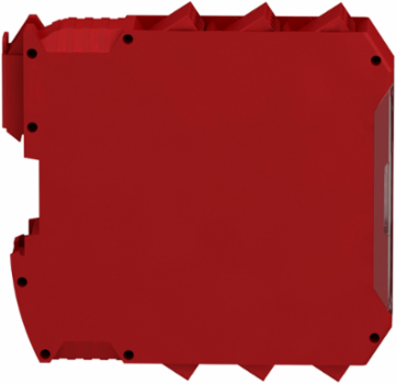

Schneider Electric XPSMCMDO0004 Modicon MCM Safe Output Expansion Module, 4 Digital Outputs, 24 VDC

  • MPN: XPSMCMDO0004
  • PPN: SCH-XPSMCMDO0004
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $855.45

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Modicon MCM Safe Output Expansion Module, 4 Digital Outputs, 24 VDC

    Features

    • This Modicon MCM digital expansion module is rigorously engineered to meet the highest safety profiles, achieving Ple (Category 4) conforming to EN/ISO 13849-1 and SILCL3 conforming to IEC 62061. This top-tier regulatory alignment ensures your automated machinery provides maximum risk mitigation for plant personnel and satisfies complex corporate or municipal safety audits without requiring redundant safety circuits.
    • Equipped with 4 single-channel (or 2 independent dual-channel pairs) solid-state OSSD (Output Signal Switching Device) safety outputs, this module delivers a stable 400 mA current per channel. It allows automation technicians to directly control up to four distinct safety actuators such as emergency stop loops, guard monitoring systems, interlocks, or perimeter guarding light curtains from a single compact point.
    • Featuring 4 integrated inputs for Start/Restart interlock and External Device Monitoring (EDM), this expansion card automatically cross-checks the physical switching state of connected contactors or drives. This eliminates hidden faults by preventing a machine restart if a downstream contactor is welded shut, immediately boosting overall cell reliability.
    • Built with 4 configurable PNP diagnostic status outputs, this module routes localized, real-time diagnostic signals back to the central processing architecture without consuming critical safety lines. Combined with a comprehensive front-facing LED matrix that signals power, operation, internal errors, and individual I/O status, field engineers can isolate faults instantly to minimize plant-floor troubleshooting downtime.
    • The unit features 6 removable captive screw clamp terminal blocks that accept wiring from AWG 24 down to AWG 14. This pluggable terminal block architecture allows field maintenance teams to fully swap out a physical module during preventative service cycles without removing or rewiring individual field cables, keeping system commissioning fast and error-free.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Italy, United States
    Depth22.5 mm

    Complementary Attributes

    Integrated Connection Type
    backplane expansion bus

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Cable Cross Section
    0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end
    Local Signalling
    1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 4 LEDs green/red OUT output status, 4 LEDs yellow RST restart signal, 4 LEDs yellow STATUS output status
    Safety Reliability Data
    DC > 99 %, MTTFd < 100 years high, PFHd = 3.44E-9 1/h
    Certificate Agency
    TÃœV, RCM, cULus
    Local Data Status
    Publishable
    Return Indicator
    N
    Future Msrp
    598.40
    Stock Policy
    1
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2403017EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1847
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Device Short Name
    XPSMCM
    Function Of Module
    monitoring safety actuators discrete output
    Insulation
    250 V AC between power supply and housing IEC 61800-5-1
    Mounting Support
    omega 35 mm DIN rail EN 50022
    Overvoltage Category
    II
    Power Dissipation In W
    3 W
    Product Or Component Type
    safe output expansion module
    Range Of Product
    Preventa Safety automation
    Service Life
    20 year(s)
    Sustainable Packaging
    No
    Pep Code
    ENVPEP2403017EN
    Width Nominal
    114.5 mm
    [Us] Rated Supply Voltage
    24 V - 20...20 % DC
    Package Weight(Lbs)
    241.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Safety LevelPL e, SIL3, can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
    Local Publishable Date2026-04-30
    Future Imap309.38
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connectionscrew terminal
    Group Of Channels4 dual channel load 400mA/output
    Load Typeresistive load
    Number Of Terminal Blocks6
    Power Consumption In W3 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityNo
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Height Nominal99 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Storage
    -20-85 °C-20-85 °C
    Environmental Disclosure
    ENVPEP2403017EN
    Ip Degree Of Protection
    IP20 enclosure)
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2403017EN
    Reach Free ShvcYes
    China Rohs RegulationX
    Ambient Air Temperature For Operation-10-55 °C-10-55 °C
    Circularity ProfileENVEOLI2403017EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %

    General Attributes

    Product Or Component Type
    safe output expansion module
    Range Of ProductPreventa Safety automation

    ETIM

    ETIM 8
    EC001449
    ETIM 9EC001449

    Output Attributes

    Discrete Output Current
    400 mA, 100 mA
    Discrete Output Type
    PNP
    Output Load
    60 Ohm
    Number Of Outputs4 safety outputs OSSD contactor/drive connection, 4 configurable diagnostic connection, 4
    Discrete Output Voltage24 V DC

    Input Attributes

    Discrete Input Type
    isolated
    Number Of Inputs
    4 digital external device monitoring
    Discrete Input Voltage24 V DC
