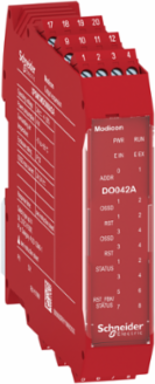

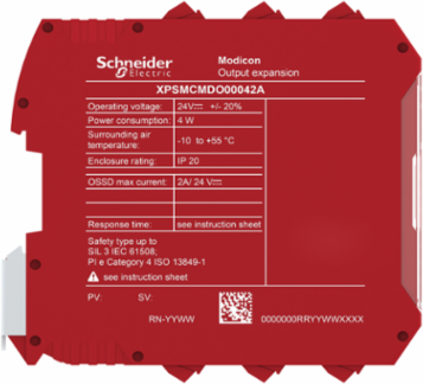

Schneider Electric XPSMCMDO00042A 4 Channel Safe Output Expansion Module, 2A, IP20, 24V DC
- MPN: XPSMCMDO00042A
- PPN: SCH-XPSMCMDO00042A
CAD
$1102.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4 Channel Safe Output Expansion Module, 2A, IP20, 24V DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy
Depth22.5 mm
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG solid, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end0.2-2.5 mm² - 24 AWG...14 AWG flexible with cable end, without bezel, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with double bezel0.5-1.5 mm² - 20 AWG...16 AWG flexible without cable end0.2-1 mm² - 24 AWG...18 AWG solid
- Local Signalling
- 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red OUT output status, 4 LEDs yellow RST restart signal8 LEDs yellow STATUS output status
- Safety Reliability Data
- DC > 99 %MTTFd = 395 years high, PFHd = 8.64E-9 1/h
- Certificate Agency
- TÜV, RCM, cULus
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Connection
- screw terminal
- Group Of Channels
- 4 single or 2 dual channel high load 2A/output
- Load Type
- resistive load
- Number Of Terminal Blocks
- 6
- Power Consumption In W
- 3 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- No
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 114.5 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Package Weight(Lbs)
- 250.0 g
- Warranty (In Months)
- 18
Function Of Modulemonitoring safety actuators discrete output, monitoring short-circuit and line break discrete output
Safety LevelPL e, SIL3can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2030
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXPSMCM
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Power Dissipation In W3 W
Product Or Component Typesafe output expansion module
Range Of ProductPreventa Safety automation
Service Life20 year(s)
Sustainable PackagingNo
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -20-85 °C-20-85 °C
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Ambient Air Temperature For Operation-10-55 °C-10-55 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- safe output expansion module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Discrete Output Current
- 2 A, 100 mA
- Discrete Output Type
- PNP
- Output Load
- 60 Ohm
Number Of Outputssafety outputs OSSD safety outputs OSSD, 8 configurable diagnostic connection, 4
Discrete Output Voltage24 V DC
Input Attributes
- Discrete Input Type
- isolated
- Number Of Inputs
- 4 digital external device monitoring
Discrete Input Voltage24 V DC
