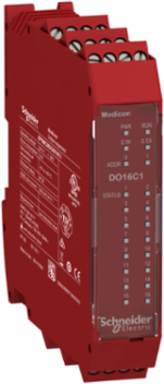

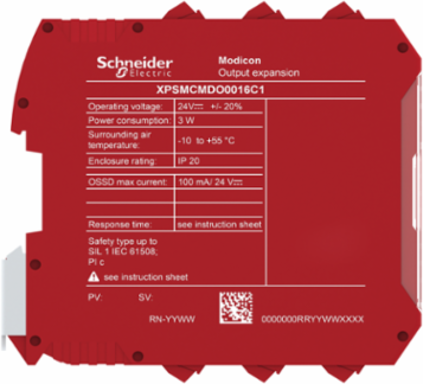

Schneider Electric XPSMCMDO0016C1 Safe Output Expansion Module 16 Digital Outputs, 24 VDC, IP20
- MPN: XPSMCMDO0016C1
- PPN: SCH-XPSMCMDO0016C1
CAD
$954.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safe Output Expansion Module 16 Digital Outputs, 24 VDC, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Depth22.5 mm
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG solid, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end0.2-2.5 mm² - 24 AWG...14 AWG flexible with cable end, without bezel, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with double bezel0.5-1.5 mm² - 20 AWG...16 AWG flexible without cable end0.2-1 mm² - 24 AWG...18 AWG solid
- Safety Level
- PL c, SIL1can reach category 1 ISO 13849-1, can reach PL = c ISO 13849-1can reach SIL 1 IEC 61508SILCL 1 IEC 62061
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Connection
- screw terminal
- Function Of Module
- monitoring safety actuators discrete output
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Power Dissipation In W
- 3 W
- Product Or Component Type
- safe output expansion module
- Range Of Product
- Preventa Safety automation
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5-1
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block
- Package Weight(Lbs)
- 244.0 g
- Warranty (In Months)
- 18
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address16 LEDs green/red OUT output status
Safety Reliability DataDC > 60 %MTTFd = 772 years high, PFHd = 6.61E-9 1/h
Certificate AgencyTÜV, RCM, cULus
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2030
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXPSMCM
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Group Of Channels16 single channel
Load Typeresistive load
Number Of Terminal Blocks6
Power Consumption In W3 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal114.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -20-85 °C-20-85 °C
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Ambient Air Temperature For Operation-10-55 °C-10-55 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- safe output expansion module
Range Of ProductPreventa Safety automation
