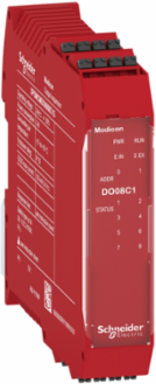

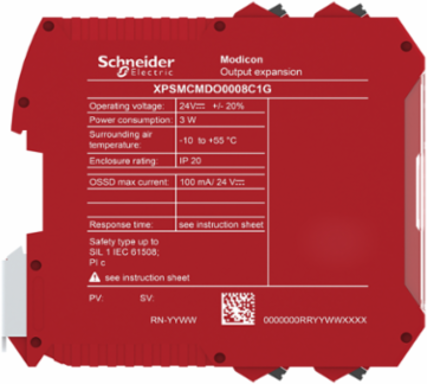

Schneider Electric XPSMCMDO0008C1G Modicon MCM Safe Output Expansion Module, 8 DO, 24 VDC, IP20

MPN: XPSMCMDO0008C1G
PPN: SCH-XPSMCMDO0008C1G

$781.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Modicon MCM Safe Output Expansion Module, 8 DO, 24 VDC, IP20

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy

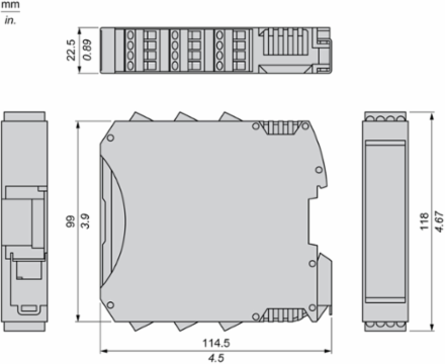

Depth	22.5 mm

Complementary Attributes

Integrated Connection Type	backplane expansion bus

Important Information Attributes

Cable Cross Section	0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid with cable end, without bezel, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
Safety Level	PL c, SIL1can reach category 1 ISO 13849-1, can reach PL = c ISO 13849-1can reach SIL 1 IEC 61508SILCL 1 IEC 62061
Vibration Resistance	+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	e
Without Single Use Plastic	Yes
Product Kit Identifier	N
Electrical Connection	spring terminal
Function Of Module	monitoring safety actuators discrete output
Insulation	250 V AC between power supply and housing IEC 61800-5-1
Mounting Support	omega 35 mm DIN rail EN 50022
Overvoltage Category	II
Power Dissipation In W	3 W
Product Or Component Type	safe output expansion module
Range Of Product	Preventa Safety automation
Service Life	20 year(s)
Sustainable Packaging	No
Height Nominal	99 mm
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 61800-5-1
Connections - Terminals	2 spring clamp terminals, removable terminal block
Package Weight(Lbs)	220.0 g
Warranty (In Months)	18

Local Signalling	1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address8 LEDs green/red OUT output status
Safety Reliability Data	DC > 60 %MTTFd = 985 years high, PFHd = 4.44E-9 1/h
Certificate Agency	RCM, cULus, TÜV
Local Publishable Date	2025-11-25
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2030
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Device Short Name	XPSMCM
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Group Of Channels	8 single channel
Load Type	resistive load
Number Of Terminal Blocks	6
Power Consumption In W	3 W
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quality Labels	CE
Returnability	No
Shock Resistance	10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	114.5 mm
[Us] Rated Supply Voltage	24 V - 20...20 % DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Storage	-20-85 °C-20-85 °C
Ip Degree Of Protection	IP20 enclosure)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Reach Free Shvc	Yes
China Rohs Regulation	X
Ambient Air Temperature For Operation	-10-55 °C-10-55 °C
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	10-95 %
