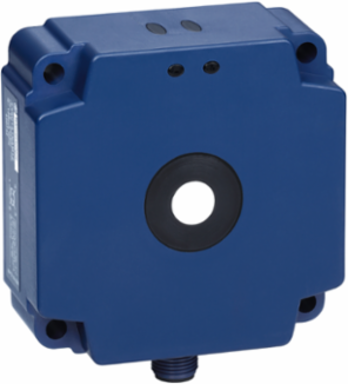

Telemecanique Sensors XX9D1A1C2M12 Ultrasonic sensors XX, ultrasonic sensor 80x80, Sn 1 m, 4...20 mA, M12 connector
- MPN: XX9D1A1C2M12
- PPN: TES-XX9D1A1C2M12
- UNSPSC: 39122230
CAD
$544.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This product features a flat format, plastic case, 80mm x 80mm x 34mm, and an M12, 4-pin connector. Analogue output signal 4-20mA, diffuse detection system. Its sensing distance is 1m, remotely remotely adjustable or by using external teach button.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 15...24 V DC reverse polarity protection
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.1-1 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 1-1 m adjustable with remote teach push-button
Type Of Output Signalanalogue
Sensor NameXX9
Materialplastic
Ip Degree Of ProtectionIP67 IEC 60529
Beam Angle7 °
Sensor Typeultrasonic sensor
Sensor Designflat form 80 x 80 x 34
Analogue Output Function4...20 mA
Complementary
- Maximum Switching Capacity
- 350 Ohm overload and short-circuit protection
- Minimum Size Of Detected Object
- cylinder diameter 50.8 mm 1 m
- Status Led
- setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
- Transmission Frequency
- 180 kHz
- Marking
- CE
- Net Weight
- 0.3 kg
- Deviation Angle From 90° Of Object To Be Detected
- -5-5 °
- Maximum Delay Recovery
- 250 ms
- Supply Voltage Limits
- 10-28 V DC
- Front Material
- epoxy
Repeat Accuracy0.9 %
Maximum Delay Response250 ms
Setting-Upslope selection using teach button
[Sa] Assured Operating Distance0.1-1 m teach mode)
Blind Zone0-100 mm
Current Consumption60 mA
Thread TypeM30 x 1.5
Maximum Delay First Up1200 ms
Enclosure Materialvalox
Environment
- Product Certifications
- cCSAus || UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-70 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111225EN
