HDMI over Cat6 Splitter/Extender Transmitter, 8-Port, 4K 60 Hz, PoC, HDR, 125 ft, TAA

HDMI over Cat6 Splitter/Extender Transmitter, 8-Port, 4K 60 Hz, PoC, HDR, 125 ft, TAA - https://images.province-electric.com/TRP-B127-008-H/8pt-4khdmi-over-cat6-medium-alt-yxwv.webp

Documentation & Downloads

Tripp Lite B127008H HDMI over Cat6 Splitter/Extender Transmitter, 8-Port, 4K 60 Hz, PoC, HDR, 125 ft, TAA

MPN: B127008H
UPC: 037332253781
PPN: TRP-B127-008-H

$367.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8-Port HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, 4K 60 Hz, PoC, 125 ft., TAA

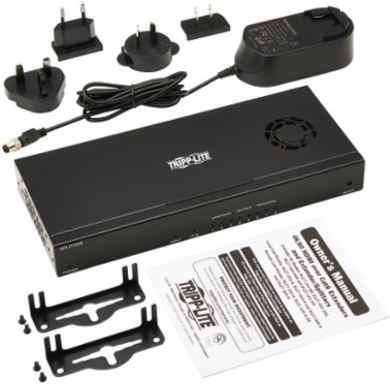

Features

Transmitter unit
External power supply with 4.5 ft cord (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A)
(4) International plug adapters (North America, Europe, U.K. and Australia)
Mounting hardware included

Documentation & Downloads

Specifications

Performance

Max Supported Video Resolution: 3840 x 2160 (4K @ 60 Hz)

Max Signal Range at 1920x1200: 150 ft

Transmission Distance: 4K @ 60 Hz, 4:4:4 HDR = 125 ft (40 m); 4K @ 30 Hz = 150 ft (45 m); 1080p @ 60 Hz = 200 ft (60 m)

HDR Support: Yes

Audio Specification: 7.1 Channel Surround Sound, DTS-HD and Dolby TrueHD

Daisy-chainable / Cascadable: No

AC Power Adapter Output: 24V / 2A

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Relative Humidity: 0-85% non-condensing

Max Signal Range at 720p200 ft

Maximum Signal Range125 ft

Max Supported Color Depth24-bit True Color

Chroma Sub Sampling4:4:4

HDCP Specification1.4; 2.2

AC Power Adapter Input100-240V / 50/60 Hz / 1.5A

Power Source TypeAC Adapter

Storage Temperature Range5° to 122°F (-15° to 50°C)

Dimensions

Technology: HDMI; Cat5/5e; Cat6; PoC

Video Output: HDMI (Female)

Number of Ports: 8

Side B - Connector 1: (8) RJ45 (Female)

Form Factor/Mounting Options: Box; Wall-mount

Video InputHDMI (Female)

Transmitter Video InputHDMI

Side A - Connector 1(2) HDMI (Female)

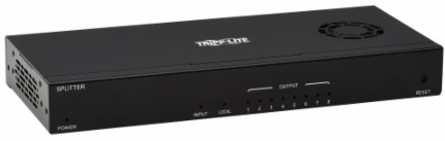

LED IndicatorsTx: x1 Green (Power); x10 Orange (Local, 1-8 Output, Input); Tx RJ45: x8 Green (Connected), x8 Orange (Activity)

Unit Dimensions1.169 x 9.252 x 3.970 in

Material

Color: Black

Material of ConstructionMetal

Reference

Product Type: Transmitter

Product Warranty Period: 1-year limited warranty

Recommended CablingSolid Wire Cat6 Cables (Tripp Lite N202-Series)
