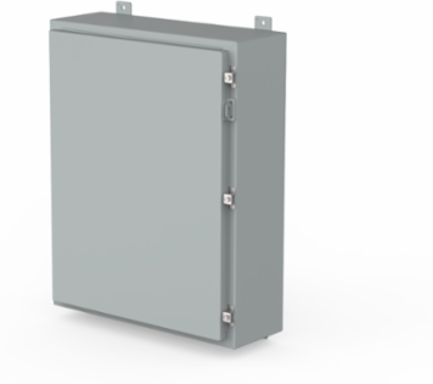

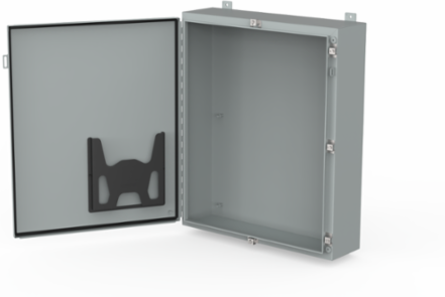

nVent Hoffman A423612LP Continuous Hinge Enclosure, 42x36x12 Inch, Gray Steel, NEMA 12
- MPN: A423612LP
- UPC: 783510279707
- PPN: HOF-A423612LP
- UNSPSC: 39121324
CAD
$1776.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A423612LP measures 42x36x12 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Additional
- Size
- 42.00x36.00x12.00 in
- Material
- Steel
- Body Gauge
- 14 gauge
- Data Pocket Size
- Large
- Door Clamps
- Stainless steel screw-down
- Mounting Brackets
- External welded-on
- NEMA Rating
- Type 12, Indoor dust-resistant
- Compliance
- UL 508A Listed, cUL Listed per CSA C22.2 No. 94
- Color
- Gray, ANSI 61
Weight122 lb
FinishPowder Coated, ANSI 61 gray
Number of Clamps6
Hinge TypeContinuous hinge with heavy-gauge stainless steel hinge pin
Bonding ProvisionOn door
GasketSeamless foam-in-place, oil-resistant
IP RatingIP66
Environmental SuitabilityIndoor and outdoor, withstands dust, dirt, lint, non-corrosive liquid drippage
