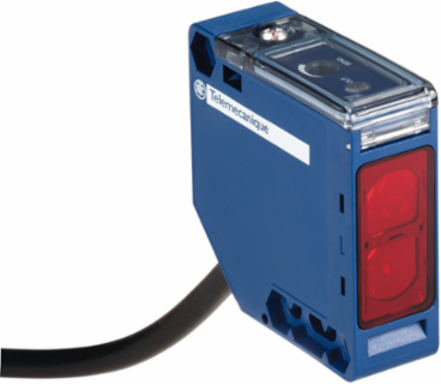

Telemecanique Sensors XUK5ARCNL2 Photoelectric sensors XU, XUK, diffuse, Sn 1 m, 24...240VAC/DC, cable 2 m
- MPN: XUK5ARCNL2
- PPN: TES-XUK5ARCNL2
CAD
$201.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Sensor Name
- XUK
- Wiring Technique
- 5-wire
- Detection System
- diffuse
- Supply Circuit Type
- AC/DC
- [Sn] Nominal Sensing Distance
- 1-1 m diffuse
Discrete Output Function1 C/O
Range Of ProductTelemecanique Photoelectric sensors XU
Emissioninfrared diffuse
Materialplastic
Series Namegeneral purpose single mode
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- <= 35 mA no-load
- Switching Frequency
- <= 20 Hz
- Status Led
- 1 LED yellow)output state || 1 LED green)supply
- Lens Material
- PMMA
- Cable Outer Diameter
- 6 mm
- Electrical Durability
- 500000 cycles 1 60 cyc/mn 250 V
- Maximum Sensing Distance
- 1.5 m diffuse
- Switching Capacity In Ma
- 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
- Enclosure Material
- PBT
- Width
- 18 mm
- Depth
- 50 mm
- [Us] Rated Supply Voltage
- 24...240 V AC/DC
Height50 mm
Maximum Delay Response25 ms
Setting-Upsensitivity adjustment
Net Weight0.035 kg
Maximum Delay Recovery25 ms
Maximum Delay First Up60 ms
Supply Voltage Limits20-264 V AC
Wire Insulation MaterialPVC
Cable Composition5 x 0.34 mm²
Output Typerelay
Maximum Power Consumption In W2 W AC
Environment
- Product Certifications
- Ecolab || CE
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111207EN
