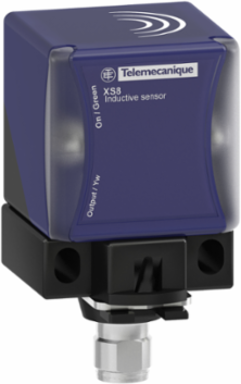

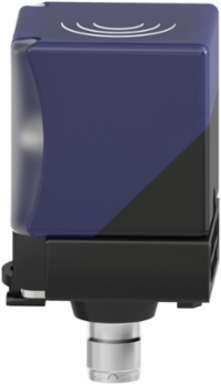

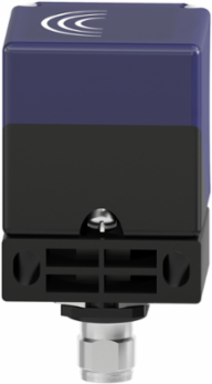

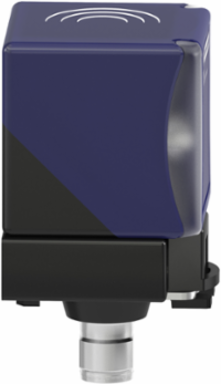

Telemecanique Sensors XS8C2A4MAU20 Inductive proximity sensors XS, inductive sensor XS8 40x40x70, PBT, Sn40 mm, 24...240VAC/DC, 1/2"
Telemecanique Sensors XS8C2A4MAU20 Inductive proximity sensors XS, inductive sensor XS8 40x40x70, PBT, Sn40 mm, 24...240VAC/DC, 1/2"
- MPN: XS8C2A4MAU20
- PPN: TES-XS8C2A4MAU20
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$393.35/ EA
Description
This XS turret head (40 x 40 x 70 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Specifications
Environment
- Product Certifications
- UL || CSA || CCC
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 msEN 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121217EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 40 mm
- Status Led
- supply on 1 LED green) || output state 1 LED yellow)
- Operating Zone
- 0-32 mm
- Marking
- CE
- Net Weight
- 0.149 kg
- Switching Frequency
- <= 25 Hz AC || <= 50 Hz DC
- Maximum Delay Recovery
- 2.5 ms
- Supply Voltage Limits
- 20-264 V AC/DC
- Width
- 70 mm
Maximum Delay Response1.4 ms
Repeat Accuracy<= 3% of Sr
Maximum Voltage Drop<5.5 V closed)
Length40 mm
Maximum Residual Current1.5 mA open state 120 V || 0.6 mA open state 24 V
Differential Travel3...15% of Sr
Maximum Delay First Up7.5 ms
Detection Face5 positions turret head
Front MaterialPBT
Specifications
- Electrical Connection
- male connector 1/2"20 UNF, 3 pins
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- plastic
- Wiring Technique
- 2-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 40 mm
- Detector Flush Mounting Acceptance
- non flush mountable
- Sensor Design
- form 40 x 40 x 70
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...240 V AC 50/60 Hz || 24...240 V DC
Type Of Output Signaldiscrete
Sensor NameXS8
Size70 mm
Ip Degree Of ProtectionIP67 IEC 60529 || IP65 IEC 60529 || IP69K DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma5...200 mA DC || 5...300 mA AC
Enclosure MaterialPBT
