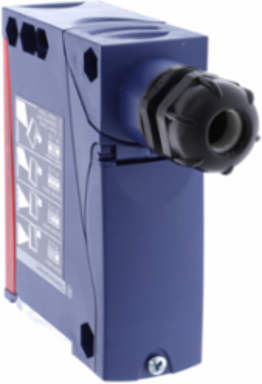

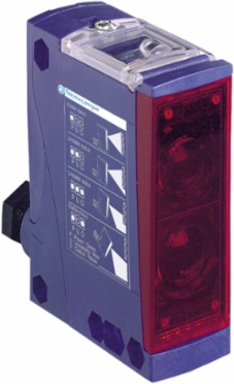

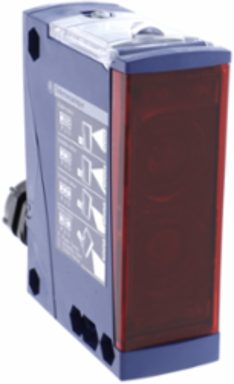

Telemecanique Sensors XUX9ARCNT16 Photoelectric sensors XU, XUX, polarised, Sn 11 m, 24...240VAC/DC, terminals
- MPN: XUX9ARCNT16
- PPN: TES-XUX9ARCNT16
- UNSPSC: 39121528
CAD
$303.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This compact design single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
|---|---|
| Type Of Output Signal | discrete |
| Emission | red polarised reflex |
| Material | plastic |
| Series Name | general purpose single mode |
| Sensor Design | compact 92 x 71 |
| Electronic Sensor Type | photo-electric sensor |
| Discrete Output Function | 1 C/O |
|---|---|
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Sensor Name | XUX |
| Wiring Technique | 5-wire |
| Detection System | polarised reflex |
| Supply Circuit Type | AC/DC |
| [Sn] Nominal Sensing Distance | 11-11 m polarised reflex need reflector XUZC50 |
Complementary
| Current Consumption | <= 35 mA no-load |
|---|---|
| Switching Frequency | <= 20 Hz |
| Status Led | 1 LED yellow)output state || 1 LED red)instability || 1 LED green)supply |
| Lens Material | PMMA |
| Maximum Voltage Drop | <1.5 V closed state) |
| Maximum Delay Recovery | 25 ms |
| Maximum Delay First Up | 60 ms |
| Supply Voltage Limits | 20-264 V AC |
| Enclosure Material | PBT |
| Output Type | relay |
| Maximum Power Consumption In W | 2 W AC/DC |
| Height | 92 mm |
|---|---|
| Maximum Delay Response | 25 ms |
| Setting-Up | sensitivity adjustment |
| Cable Entry | 1 entry for M16 x 1.5 cable gland 7-10 mm |
| Net Weight | 0.2 kg |
| Electrical Durability | 500000 cycles 1 60 cyc/mn 250 V || 500000 cycles 0.4 60 cyc/mn 250 V |
| Maximum Sensing Distance | 15 m polarised reflex |
| Switching Capacity In Ma | 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) || 0.5 A cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Width | 31 mm |
| Depth | 77 mm |
| [Us] Rated Supply Voltage | 24...240 V AC/DC |
Environment
| Product Certifications | UL || CSA || CE |
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111233EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111209EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
