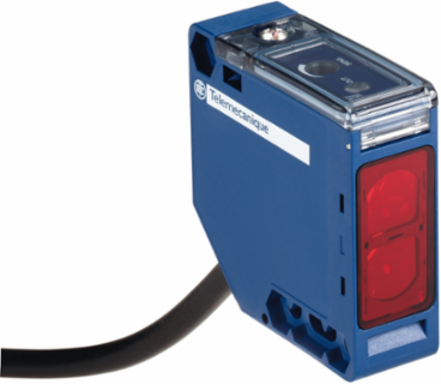

Telemecanique Sensors XUK0ARCTL2 Photoelectric sensors XU, XUK, multi, Sn 0...30 m, 24...240VAC/DC, cable 2 m
- MPN: XUK0ARCTL2
- PPN: TES-XUK0ARCTL2
- UNSPSC: 39121528
CAD
$278.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Sensor Name
- XUK
- Wiring Technique
- 5-wire
- Detection System
- multimode
- Supply Circuit Type
- AC/DC
- [Sn] Nominal Sensing Distance
- 4-4 m polarised reflex need reflector XUZC50 || 30-30 m thru beam need a transmitter XUK0ARCTL2T || 0.28-0.28 m diffuse with background suppression || 0.8-0.8 m diffuse
Discrete Output Function1 NO or 1 NC programmable
Range Of ProductTelemecanique Photoelectric sensors XU
Emissioninfrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
Materialplastic
Series Namegeneral purpose multimode
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor
Complementary
- Height
- 50 mm
- Maximum Delay Response
- 25 ms
- Setting-Up
- self-teaching
- Maximum Voltage Drop
- <1.5 V closed state)
- Time Delay Range
- 0...10 s monostable, on-delay or off-delay (programmable)
- Electrical Durability
- 500000 cycles 1 60 cyc/mn 250 V
- Maximum Sensing Distance
- 35 m thru beam || 0.28 m diffuse with background suppression || 1.2 m diffuse || 5.7 m polarised reflex
- Switching Capacity In Ma
- 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
- Enclosure Material
- PBT
- Output Type
- relay
- Maximum Power Consumption In W
- 3 W AC/DC
- [Us] Rated Supply Voltage
- 24...240 V AC || 24...240 V DC
Switching Frequency<= 20 Hz
Status Led1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
Lens MaterialPMMA
Net Weight0.175 kg
Maximum Delay Recovery25 ms
Maximum Delay First Up300 ms
Supply Voltage Limits20-264 V AC || 20-264 V DC
Wire Insulation MaterialPvR
Width18 mm
Depth50 mm
Add On Outputwithout, <= 50 mA overload and short-circuit protection
Environment
- Product Certifications
- CE || UL || CSA
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111207EN
