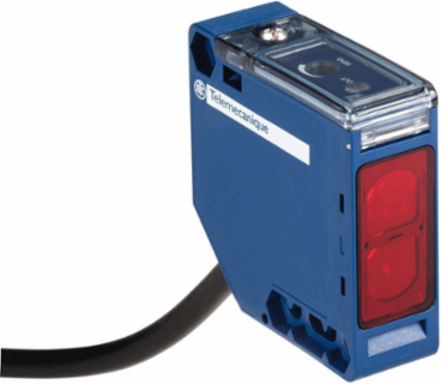

Telemecanique Sensors XUK2ARCNL2R Photoelectric sensors XU, XUK, receiver, Sn 30 m, 24...240VAC/DC, cable 2 m
- MPN: XUK2ARCNL2R
- PPN: TES-XUK2ARCNL2R
- UNSPSC: 39121528
CAD
$194.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (thru-beam system) photo-electric receiver has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric receiver has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Sensor Name
- XUK
- Wiring Technique
- 5-wire
- Detection System
- thru beam
- Supply Circuit Type
- AC/DC
- [Sn] Nominal Sensing Distance
- 30-30 m thru beam need a transmitter XUK2ARCNL2T
Discrete Output Function1 NC + 1 NO
Range Of ProductTelemecanique Photoelectric sensors XU
Emissioninfrared thru beam
Materialplastic
Series Namegeneral purpose single mode
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor receiver
Complementary
- Height
- 50 mm
- Maximum Delay Response
- 25 ms
- Setting-Up
- without sensitivity adjustment
- Maximum Voltage Drop
- <1.5 V closed state)
- Maximum Delay Recovery
- 25 ms
- Maximum Delay First Up
- 60 ms
- Supply Voltage Limits
- 20-264 V AC/DC
- Wire Insulation Material
- PVC
- Width
- 18 mm
- Depth
- 50 mm
- Add On Output
- without
Switching Frequency<= 20 Hz
Status Led1 LED yellow)output state
Lens MaterialPMMA
Net Weight0.07 kg
Electrical Durability500000 cycles 1 60 cyc/mn 250 V
Maximum Sensing Distance45 m thru beam
Switching Capacity In Ma3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Enclosure MaterialPBT
Output Typerelay
Maximum Power Consumption In W2 W AC
[Us] Rated Supply Voltage24...240 V AC/DC
Environment
- Product Certifications
- CE || CSA || UL
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111207EN
