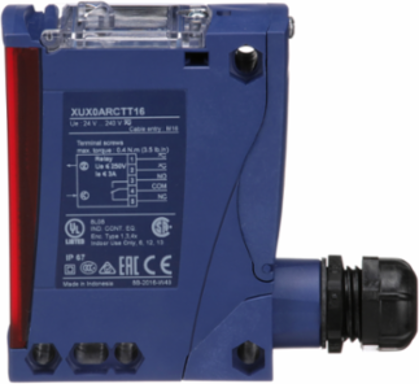

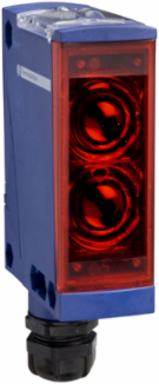

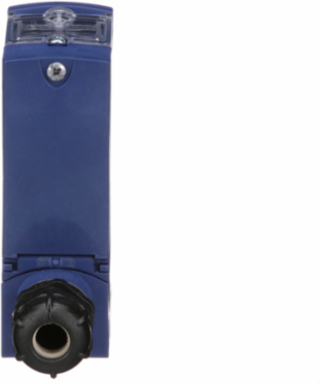

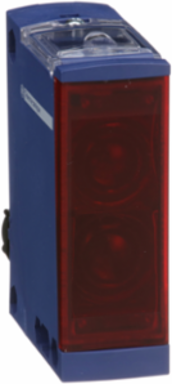

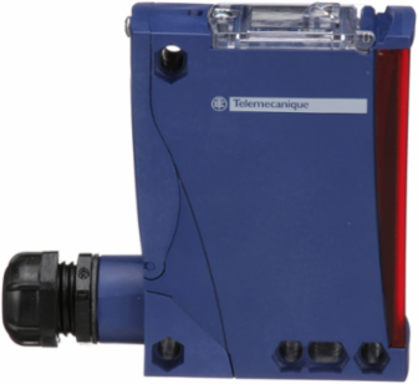

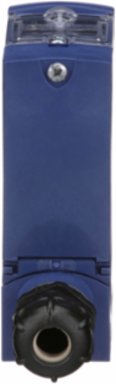

Telemecanique Sensors XUX0ARCTT16 Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 24...240VAC/DC, terminals
- MPN: XUX0ARCTT16
- PPN: TES-XUX0ARCTT16
CAD
$359.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Additional
- Supply Voltage
- 24...240 V AC/DC
- Switching Capacity
- 0.5 A cos φ=0.4, 3 A cos φ=1 at 250 V, 0.5 million cycles
- Maximum Voltage Drop
- <1.5 V closed state
- Time Delay Range
- 0.02...15 s monostable, on-delay or off-delay programmable
- Maximum Delay Response
- 25 ms
- Length
- 92 mm (3.62 in)
- Depth
- 77 mm (3.03 in)
- Material
- PBT plastic
- Output Type
- Discrete relay
- Electrical Connection
- Screw-clamp terminals, 1 x 1.5 mm8 or 1 x 0.75 mm8 with adaptor, 1 entry M16 x 1.5 cable gland 7-10 mm
- RoHS Exemption
- Yes, pro-active compliance
- Product Certifications
- UL, CSA, CE
- Ambient Air Temperature for Storage
- -40 to 70 0C (-40 to 158 0F)
- Shock Resistance
- 30 gn 11 ms IEC 60068-2-27
- Country of Origin
- Indonesia
- Sensor Name
- XUX photo-electric sensor
- Setting-up
- Self-teaching
- Wiring Technique
- 5-wire
Maximum Sensing Distance15 m polarised reflex, 3 m diffuse, 60 m thru beam, 1.3 m diffuse with background suppression
Switching Frequency<= 20 Hz
Power Consumption2 W AC/DC
Maximum Delay First Up200 ms
Maximum Delay Recovery25 ms
Width31 mm (1.22 in)
Net Weight0.2 kg (0.44 lb)
Lens MaterialPMMA
Output Function1 NO or 1 NC programmable
Environmental DisclosureENVPEP111233EN
IP Degree of ProtectionIP65 and IP67 double insulation IEC 60529
Ambient Air Temperature for Operation-25 to 55 0C (-13 to 131 0F)
Vibration Resistance7 gn b1 1.5 mm, 10-55 Hz IEC 60068-2-6
Electrical Durability500,000 cycles at 250 V
Series Namegeneral purpose multimode
EmissionInfrared diffuse, diffuse with background suppression, thru beam, red polarised reflex
Add On OutputWith alarm output, 300 mA overload and short-circuit protection
Status LED1 green (supply), 1 red (instability), 1 yellow (output state)
