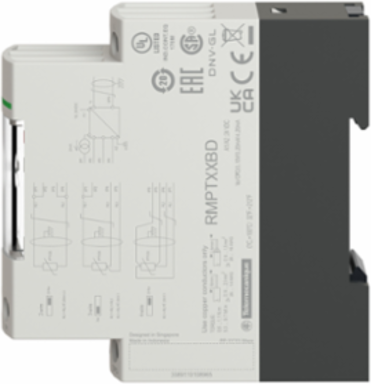

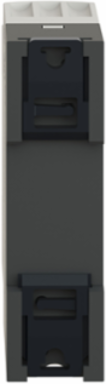

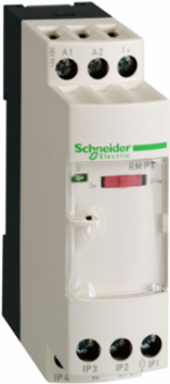

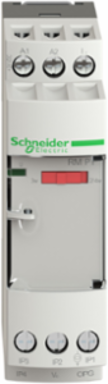

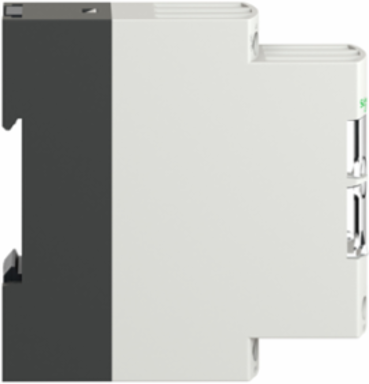

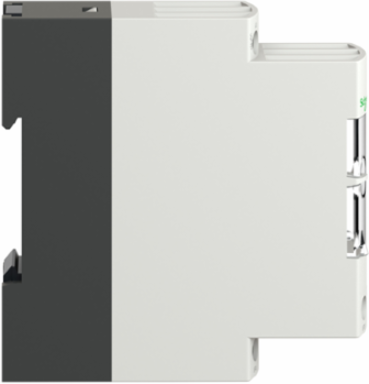

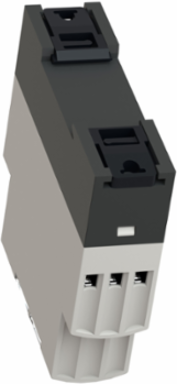

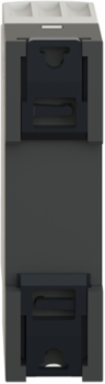

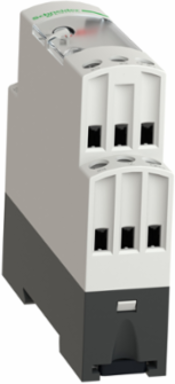

Schneider Electric RMPT50BD Harmony Analog Pt100 Temperature Converter, 0-250 C/32-482 F, 24V DC
- MPN: RMPT50BD
- PPN: SCH-RMPT50BD
CAD
$216.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony Analog temperature transmitter provides a versatile interface for your machines. It has a reverse polarity protection, a short-circuit protection and an overvoltage protection. 0 It is dust resistant, impact resistant and vibration resistant, thanks to its IP20 and IP50, making it ideal for operations in harsh environments. The product is a converter for Universal Pt100 probes with 0-250 °C/32-482 °F analogue input type. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output
- Fire Resistance
- 850 °C IEC 60695-2-1, 850 °C UL
- Measurement Error
- +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference)+/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C temporary performance degradation when subject to electromagnetic interference)
- Repeat Accuracy
- +/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C+/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C
- Safety Reliability Data
- B10d = 30437, MTTFd = 32.9 years
- Disturbance Radiated/Conducted
- CISPR 11, CISPR 22 group 1 - class B
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0542807517
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.4459679606
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Marking
- CE
- Product Or Component Type
- converter for Universal Pt100 probes
- Returnability
- Yes
- Software Version
- EIME v5.5
- Temperature Coefficient
- 150 ppm/°C
- Total Lifecycle Carbon Footprint
- 23 kg CO2 eq.
- Pep Code
- ENVPEP2511011EN
- Pep Verification Date
- 2016-09-01
- Psr Version
- PSR-0005-ed1-2012 12 11
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia (Schneider Electric Batam)
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- [Ui] Rated Insulation Voltage
- 2000 V
- Package Weight(Lbs)
- 109.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Fixing Modeclip-on (35 mm symmetrical DIN rail), fixed (mounting plate)
Protection Typereverse polarity protection on output, short-circuit protection on output, reverse polarity protection on power supply, overvoltage protection on output (+/- 30 V)
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)
Certificate AgencyCSA, UL, GL
Carbon Footprint Of The Distribution Phase [A4]0.0136761553, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0008238349, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]21 kg CO2 eq., 20.6872727273
Local Publishable Date2026-02-24
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2511011EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Local SignallingLED (green) for power ON
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Analog
Shock Resistance50 gn 11 ms IEC 60068-2-27
Sustainable PackagingYes
Tightening Torque0.6-1.1 N.m
Vibration Resistance5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Database Version2015-04
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh35.04
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
- Ip Degree Of Protection
- IP20 terminal block), IP50 housing)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2511011EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2511011EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint23.2020214297
Environmental DisclosureENVPEP2511011EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2016-09-01
Psr VersionPSR-0005-ed1-2012 12 11
General Attributes
- Product Or Component Type
- converter for Universal Pt100 probes
Range Of ProductHarmony Analog
ETIM
- ETIM 8
- EC002081
ETIM 9EC002081
Output Attributes
- Analogue Output Current
- -30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken, 22-30 mA no input or input wire broken
- Analogue Output Voltage
- -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, 11...15 V no input or input wire broken
Analogue Output Typecurrent 0...20 mA, current 4...20 mA, voltage 0...10 V
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- RTD 0...250 °C/32...482 °F Pt 100 2, 3 or 4 wires
