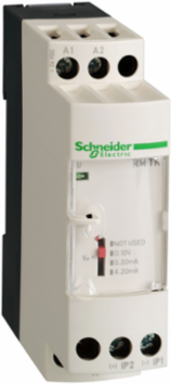

Schneider Electric RMTK80BD Harmony Analog Thermocouple Converter, 0-600°C, 24V DC
- MPN: RMTK80BD
- PPN: SCH-RMTK80BD
CAD
$255.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Harmony Analog Thermocouple Converter, 0-600°C, 24V DC
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Analog
- Product Or Component Type
- converter for thermocouples
Analogue Output Typecurrent 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
Analogue Input Typethermocouple 0...600 °C/32...1112 °F thermocouple K IEC 60584
Complementary
- Current Consumption
- <= 40 mA voltage output || <= 60 mA current output
- Measurement Error
- +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) || +/- 1 % of full scale 20 °C
- Cold Junction Compensation
- built-in between 0 and 60 °C
- Marking
- CE
- Net Weight
- 0.12 kg
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
- Temperature Coefficient
- 200 ppm/°C
- Tightening Torque
- 0.6-1.1 N.m
- Repeat Accuracy
- +/- 0.25 % full scale 20 °C || +/- 0.8 % full scale 60 °C
Safety Reliability DataMTTFd = 49.2 years || B10d = 45447
Clamping Connection Capacity1 x 2.5 mm² || 2 x 1.5 mm²
[Ui] Rated Insulation Voltage2 kV
Analogue Output Voltage-15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
Fixing Modeby screws (mounting plate) || clip-on (35 mm symmetrical DIN rail)
Local Signallingpower ON LED green)
Protection Typeovervoltage protection on output (+/- 30 V) || reverse polarity protection on output || short-circuit protection on output
Analogue Output Current-30-0 mA no input or input wire broken
[Us] Rated Supply Voltage24 V DC +/- 20 %, non isolated
Environment
- Product Certifications
- CSA || UL || GL
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Vibration Resistance
- 5 gn 10-100 Hz)IEC 60068-2-6
- Disturbance Radiated/Conducted
- CISPR 11 || CISPR 22 group 1 - class B
- Ambient Air Temperature For Storage
- -40-85 °C
- Fire Resistance
- 850 °C IEC 60695-2-1 || 850 °C UL
StandardsIEC 60584-1 || IEC 60947-1
Shock Resistance50 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP20 terminal block) || IP50 housing)
Pollution Degree2 IEC 60664-1
Resistance To Electrostatic Discharge6 kV in contact)IEC 61000-4-2 level 3 || 8 kV in air)IEC 61000-4-2 level 3
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1607005EN
