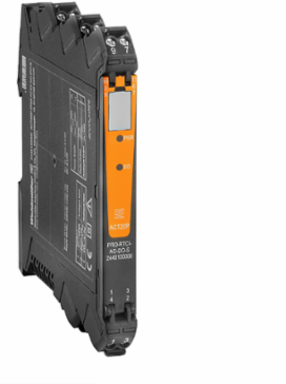

Weidmuller 2448100000 Universal Temperature Converter with 600 V Rated Voltage, -200 to +850 C Input Range
- MPN: 2448100000
- PPN: WDM-2448100000
CAD
$577.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Temperature converter, Limit value monitoring, Signal converter/isolator, universal, Input: temperature (RTD), Analogue output, Relay output
Documentation & Downloads
Specifications
General Data
- Accuracy
- < ±0.1 % of span, ≤ 2 °C (PT100)
- Power consumption
- ≤ 2.6 W
- Step response time
- 2- / 4- wire: 320 ms;, 3- wire / Poti: 640 ms
- Voltage supply
- 24…230 V DC ±15%, 24…230 V AC ±15% @48…62 Hz
Configurationwith push-buttons and display
RailTS 35
Temperature coefficient≤ 0.02 % / °C, ≤ 200 ppm/K
Approvals
- Approvals
- EAC
ROHSConform

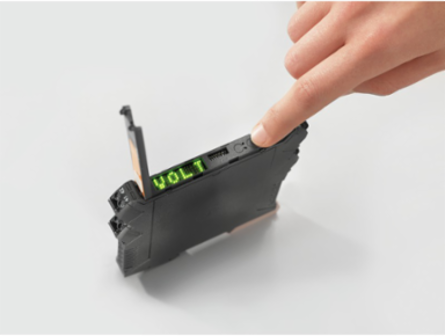

Display
- Type
- Dot-matrix display with ticker text, green
Display valueConfiguration data and process data (input/output) in operation

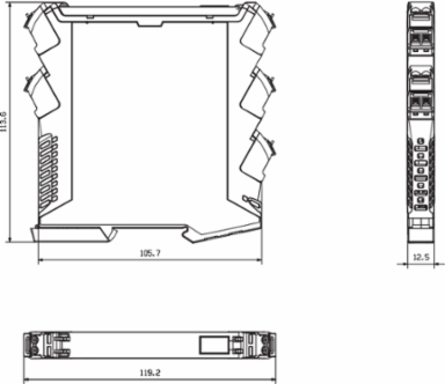

Dimensions And Weights
- Width
- 12.5 mm
- Height
- 119.2 mm
- Depth
- 113.7 mm
- Net weight
- 194 g
Width (inches)0.492 inch
Height (inches)4.693 inch
Depth (inches)4.476 inch
Output (Digital)
- Alarm function
- configurable, Top and bottom limit values, window range, Short circuit at input, Alarm delay: 0...10 s, Hysteresis 5% / 10%
- Type
- NPN-Transitor, Switching frequency 5 kHz
- Rated switching voltage
- 24 VDC ±30%
Number of digital outputs1
Rated switching current100 mA
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Input
- Number of inputs
- 1
- Temperature input range
- adjustible from -200…+850 °C
- Potentiometer
- 10…150 kΩ
SensorPT100 / 2-/3-/4-wire, PT200, PT500, N50, N100, P 1K, N 1K, KT16, KT81, KT82, KT83, KT84, ST13, ST20
Resistance0…15 kΩ
Output (Analogue)
- Load resistance current
- ≤ 600 Ω
- Output current
- configurable, 0(4)...20 mA, -20…+20 mA, ± 10mA, upscale (23 mA), downscale (3,5 mA)
- Signal output
- direct or inverted
Load resistance voltage> 1 kΩ (60 VAC < Uin < 230 VAC), > 5 kΩ (24 VAC < Uin < 60 VAC)
Output voltageconfigurable, 0(1)...5 V, 0(2)...10 V, downscale (0 V), upscale (11 V), -5…+5 V, -10...+10 V
Type (analogue output)Voltage and current output (configurable), Active/passive
Classifications
- ETIM 6.0
- EC002919
- eClass 9.0
- 27-21-01-29
- eClass 10.0
- 27-21-01-29
ETIM 7.0EC002919
eClass 9.127-21-01-29
Product Information
- Product information

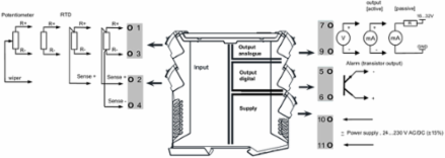

- The universal, configurable resistance measuring transducer ACT20P-PRO-RTCI-AO-DOS converts 2- / 3- / 4-wire ohmic resistance and potentiometers into an active or passive standard current signal or an active voltage signal. For set point Limit Monitoring the device is equipped with an digital NPN Output. The universal power supply can be powerd up from 24Vuc...230Vuc. The device can be configured via the display. Features universal wide range supply universal configurability, LED- Display by touch key Active or passive signal output Digital NPN transistor output Operating status display via frontsided LED Galvanic 4-way isolation between Input, analogue, digital output and supply
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61326-1
- Insulation voltage
- 4 kVeff / 1 min.
- Rated voltage
- 600 V
Impulse withstand voltage5 kV (1.2/50 µs)
Pollution severity2
Surge voltage categoryII
Temperatures
- Storage temperature, max.
- 85 °C
- Ambient temperature
- -25 °C...+70 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
