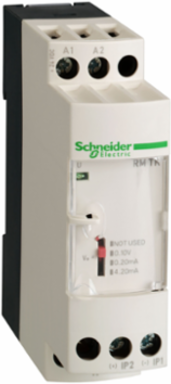

Schneider Electric RMTK90BD Harmony Analog Thermocouple Converter, 0-1200 C, 24V DC Output
- MPN: RMTK90BD
- PPN: SCH-RMTK90BD
CAD
$255.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony Analog Thermocouple Converter, 0-1200 C, 24V DC Output
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 40 mA voltage, <= 40 mA voltage, <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current, <= 60 mA current<= 40 mA voltage, <= 40 mA voltage, <= 40 mA voltage output, <= 60 mA current, <= 60 mA current
- Fixing Mode
- by screws (mounting plate), clip-on (35 mm symmetrical DIN rail)
- Protection Type
- overvoltage protection on output (+/- 30 V), reverse polarity protection on output, short-circuit protection on output
- Resistance To Electrostatic Discharge
- 6 kV in contact)IEC 61000-4-2 level 3, 8 kV in air)IEC 61000-4-2 level 3
- Safety Reliability Data
- MTTFd = 49.2 years, B10d = 45447
- Disturbance Radiated/Conducted
- CISPR 11, CISPR 22 group 1 - class B
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cold Junction Compensation
- built-in between 0 and 60 °C
- Marking
- CE
- Product Or Component Type
- converter for thermocouples
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1.1 N.m
- Pep Code
- ENVPEP1607005EN
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %, non isolated
- Package Weight(Lbs)
- 101.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Fire Resistance850 °C IEC 60695-2-1, 850 °C UL
Measurement Error+/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference)+/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference)
Repeat Accuracy+/- 0.25 % full scale 20 °C, +/- 0.25 % full scale 20 °C, +/- 0.8 % full scale 60 °C, +/- 0.8 % full scale 60 °C+/- 0.25 % full scale 20 °C, +/- 0.25 % full scale 20 °C, +/- 0.8 % full scale 60 °C, +/- 0.8 % full scale 60 °C
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)
Certificate AgencyGL, UL, CSA
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Local SignallingLED (green) for power ON
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Analog
Shock Resistance50 gn 11 ms IEC 60068-2-27
Temperature Coefficient200 ppm/°C
Vibration Resistance5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
[Ui] Rated Insulation Voltage2 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
- Ip Degree Of Protection
- IP20 terminal block), IP50 housing)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1409020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1607005EN
General Attributes
- Product Or Component Type
- converter for thermocouples
Range Of ProductHarmony Analog
ETIM
- ETIM 8
- EC002081
ETIM 9EC002081
Output Attributes
- Analogue Output Current
- -30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken
- Analogue Output Voltage
- -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, 11...15 V no input or input wire broken
Analogue Output Typecurrent 0...20 mA <= 500 Ohm, current 4...20 mA <= 500 Ohm, voltage 0...10 V >= 100 kOhm
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- thermocouple 0...1200 °C/32...2192 °F
