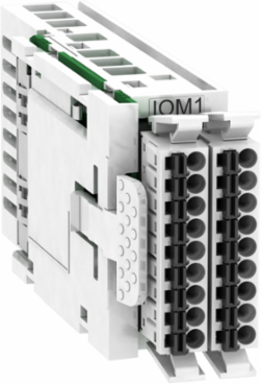

Schneider Electric VW3M3302 Lexium 32 Additional I/O Module, 4 Discrete Inputs, 0.45 kg
- MPN: VW3M3302
- PPN: SCH-VW3M3302
- UNSPSC: 26111515
CAD
$454.03
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The additional I/O module provides 4 discrete inputs, 2 discrete outputs and 2 analogue inputs/outputs. It provides protection from reverse polarity on input. It is furnished with spring terminal for electrical connection. It weighs 0.45kg. This range is compatible with Lexium 32 servo drives. This product is compatible with Lexium 32M. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.
Features
- Additionnal IO module to fit the needs of remote IO
- Fully adapted to perform Lexium 32 servo drive capacity
- Equipped with removable spring terminal connector for easy cabling
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 134 g |
|---|
Important Information Attributes
| Input/Output Type | 4 discrete inputs - 3...5 V/15...30 V, 2.5 mA, 0.25 ms, 2 discrete outputs <= 30 V, <= 100 mA, 0.25 ms, 2 analog outputs - 10...10 V, 0...20 mA, , 470 Ohm 12 bits 0.25 ms, 2 analog inputs - 10...10 V, , 20 kOhm 14 bits 0.25 ms |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.0849823008105191 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 8 kg CO2 eq., 8.336042394420236 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1407005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Electrical Connection | spring terminal |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | reverse polarity protection on input |
| Reverse Polarity Protection | yes on input |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Accessory / Separate Part Category | communication accessories |
| Accessory / Separate Part Type | module |
| Customs Code | 8538908180 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Pep End Of Validity Date Calculated | 2031-08-28 |
| Carbon Footprint Of The Distribution Phase A4 | 0.022511427135878687, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.08530602363522831, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 92 kg CO2 eq., 92.49542199341025 |
| Local Publishable Date | 2026-08-06 |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | additionnal I/O module |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 101 kg CO2 eq. |
| Data Source | extrapolated product |
| Accessory / Separate Part Destination | servo drive |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Protection | yes on output |
| Functional Unit Description | To integrate communication functionalities to the LXM32 Controller 100% of the time for 10 years |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 131.4 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 101.02426413941211 |
| Environmental Disclosure | ENVPEP1407005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Lexium 32M |
| Pep Code | ENVPEP1407005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1407005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-08-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | additionnal I/O module |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
