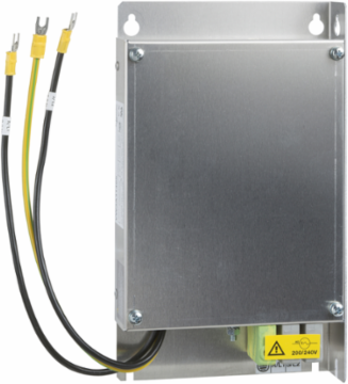

Schneider Electric VW3A31403 Additional EMC Input Filter, 1 Phase, 16 A, IP20, -10 to 50 C Operation

MPN: VW3A31403
PPN: SCH-VW3A31403
UNSPSC: 39121021

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$128.15

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This additional EMC input filter from Schneider Electric enhances the performance of 1-phase AC drives by minimizing electromagnetic interference and ensuring consistent operation. Operating effectively within a temperature range of -10 to 50 C, it is ideal for various industrial settings. With a rating of 16 A and an IP20 enclosure, this filter is designed for reliable integration, helping to protect sensitive electronic components and improve overall system efficiency in automation and control applications.

Features

Enable the drives to meet more stringent requirements
Reduce conducted emissions on the supply mains
Conforms to standard IEC 61800-3 category C1 or C4
Save space with drive mounting onto the filter.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Thailand

Complementary Attributes

Line Rated Current	16 A

Network Rated Voltage	200-240 V

Important Information Attributes

Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Persona Type Ids	EU
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Earth Leakage Current	150 mA 50 Hz
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Specific Application	radio interference input filter
Returnability	Yes
Sustainable Packaging	No
Tolerance	10 %
Certificate Agency	IEC 61800-3
Customs Code	8504409580

Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	End User
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Compatibility Code	LXM23
Phase	single phase
Product Or Component Type	EMC input filter
Range Of Product	Altivar
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Thermal Losses	6.9 W ATV31CU11M2
Vibration Resistance	1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Product Compatibility	variable speed drive ATV320...C1.5 kW, 200...240 V single phasevariable speed drive ATV320...W/ATV320...WS1.5 kW, 200...240 V single phaseservo drive LXM230.75 kW, servo drive LXM231 kW, servo drive LXM231.5 kW, ATV312HU11M2, ATV312HU15M2, ATV31CU11M2, ATV31CU15M2, LXM05AD17F1, LXM05AD17M2, LXM05BD17F1, LXM05BD17M2, LXM05CD17M2, variable speed drive ATV320...C1.1 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS1.1 kW, 200...240 V single phase
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Ambient Air Temperature For Operation	-10-50 °C-10-50 °C
Ip Degree Of Protection	IP20IP41 upper part)
Packaging Without Single Use Plastic	No
Relative Humidity	0-93 % IEC 68-2-3

Operating Altitude	<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
