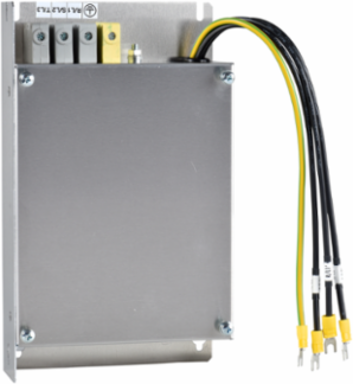

Schneider Electric VW3A31409 EMC Input Filter 3-Phase 49 A with IP20 Protection
- MPN: VW3A31409
- PPN: SCH-VW3A31409
CAD
$415.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The EMC Input Filter from Schneider Electric is designed to enhance the performance of 3-phase AC drives, providing crucial electromagnetic compatibility (EMC) for applications requiring reliable operation in delicate environments. Capable of supporting up to 49 A, this filter effectively minimizes electrical noise, ensuring optimal performance and longevity for connected equipment. With an IP20 protection rating, it safeguards the internal components from dust and contact, making it a dependable choice for industrial automation and control systems where robustness and efficiency are paramount.
Documentation & Downloads
Specifications
Additional
- Amperage
- 49 A
- Network Number Of Phases
- Three phase
- Earth Leakage Current
- 42.8 mA 480 V 60 Hz, 42.8 mA 50 Hz
- Protection Rating
- IP20, IP41 upper part
- Tightening Torque
- 4.5 N.m (39.83 lbf.in)
- Operating Temperature
- -10 to 50 °C
- Operating Altitude
- Up to 1000 m without derating, up to 3000 m with derating (1 % per 100 m)
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Relative Humidity
- 0-93 % IEC 68-2-3
- Range Of Product
- Altivar
- Product Compatibility
- ATV212HD15N4, ATV212HD18N4, ATV31CD11N4, ATV31CD15N4, ATV312HD11N4, ATV312HD15N4
- China RoHS Regulation
- X
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- RoHS Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Storage
- -25 to 70 °C
Voltage380-500 V
Thermal Losses13.8 W ATV21HD18N4, 27.4 W ATV31CD11N4, 9.2 W ATV21HD15N4
Tolerance10 %
Electrical ConnectionTerminal 25 mm² AWG 2
Net Weight4.75 kg (10.47 lb)
Storage Temperature-25 to 70 °C
Vibration Resistance1 gn 13-150 Hz, 1.5 mm peak to peak 3-13 Hz IEC 60068-2-6
Standards ComplianceIEC 61800-3
Product Or Component TypeEMC input filter
Range CompatibilityAltivar 212, Altivar 312, Altivar 31C
Product Specific ApplicationRadio interference input filter
EU RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Mercury FreeYes
Ambient Air Temperature For Operation-10 to 50 °C
Warranty18 months
