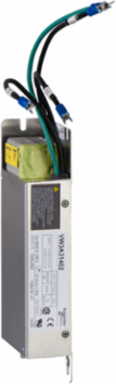

Schneider Electric VW3A31402 EMC Input Filter, 7 A - 3-Phase Compatibility, IP20/IP41 Protection

EMC Input Filter, 7 A - 3-Phase Compatibility, IP20/IP41 Protection
  • MPN: VW3A31402
  • PPN: SCH-VW3A31402

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$113.83/ EA

    Description

    Engineered with precision, the EMC Input Filter from Schneider Electric is designed to enhance the performance of 3-phase systems while effectively managing electromagnetic interference. With a current capacity of up to 7 A, this filter offers robust protection under the IP20/IP41 standards, ensuring reliable operation in various environments. It is an essential component for those looking to optimize their automation and control setups, particularly in the realms of motors and drives where stability and efficiency are paramount.

    Specifications

    Current Capacity
    7 A
    Voltage Tolerance
    10 %
    Operating Altitude
    <= 1000 m without current derating; 1000-3000 m with 1 % derating per 100 m
    Thermal Losses
    2.6 W
    Vibration Resistance
    1 gn (13-150 Hz), 1.5 mm peak-to-peak (3-13 Hz) IEC 60068-2-6
    Weight
    0.65 kg (1.43 lb)
    Relative Humidity
    0-93 % IEC 68-2-3
    Storage Ambient Temperature
    -25 to 70 °C (-13 to 158 °F)
    Certifications
    IEC 61800-3
    Product Compatibility
    Lexium 05, Altivar 312 Solar, Altivar 312, Altivar Machine ATV320
    Voltage200-240 V
    Maximum Earth Leakage Current7 mA 50 Hz
    PhaseThree phase
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Dimensions72 x 195 x 37 mm (2.83 x 7.68 x 1.46 in.) (a x b x c)
    IP Degree of ProtectionIP20; IP41 upper part
    Operating Ambient Temperature-10 to 50 °C (14 to 122 °F)
    Material ComplianceRoHS compliant, REACh free of SVHC, Toxic heavy metal free, Mercury free, China RoHS
    Product TypeEMC input filter
    Compatible ModelsATV312H018M3, ATV312H037M3, ATV312H055M3, ATV312H075M3, LXM05AD10M3X, LXM05BD10M3X, ATV320 C0.18 kW 200-240 V, ATV320 C0.37 kW 200-240 V, ATV320 C0.55 kW 200-240 V, ATV320 C0.75 kW 200-240 V
