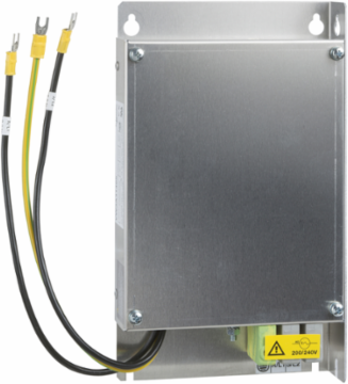

Schneider Electric VW3A31405 EMC Input Filter, 1-Phase Supply, 22 A, IP20 Protection
- MPN: VW3A31405
- PPN: SCH-VW3A31405
- UNSPSC: 39121021
CAD
$181.78
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This EMC input filter from Schneider Electric is engineered for 1-phase supply systems, providing essential electromagnetic compatibility for devices operating with a current of up to 22 A. Designed to enhance the operational integrity of automation and control systems, this filter ensures minimal interference in electrical signals, contributing to a stable and efficient environment for motors and drives. With an IP20 protection rating, it is suitable for indoor applications where exposure to moisture and dust is limited, making it a reliable accessory for your drive solutions. A crucial component for maintaining the performance and longevity of your systems, this filter exemplifies Schneider Electric's commitment to innovation in drive technology.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Thailand |
|---|
Complementary Attributes
| Line Rated Current | 22 A |
|---|
| Network Rated Voltage | 200-240 V |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Phase | single phase |
| Product Or Component Type | EMC input filter |
| Range Of Product | Altivar |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Thermal Losses | 7.5 W ATV31CU22M2 |
| Vibration Resistance | 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Earth Leakage Current | 80 mA 50 Hz |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | radio interference input filter |
| Returnability | Yes |
| Sustainable Packaging | No |
| Tolerance | 10 % |
| Certificate Agency | IEC 61800-3 |
| Customs Code | 8548000000 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Product Compatibility | ATV312HU22M2, ATV31CU22M2, LXM05AD28F1, LXM05AD28M2, LXM05BD28F1, LXM05BD28M2, LXM05CD28M2, variable speed drive ATV320...C2.2 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS2.2 kW, 200...240 V single phase |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Ambient Air Temperature For Operation | -10-50 °C-10-50 °C |
| Ip Degree Of Protection | IP20IP41 upper part) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-93 % IEC 68-2-3 |
| Operating Altitude | <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Phase | single phase |
|---|---|
| Range Of Product | Altivar |
| Product Or Component Type | EMC input filter |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
