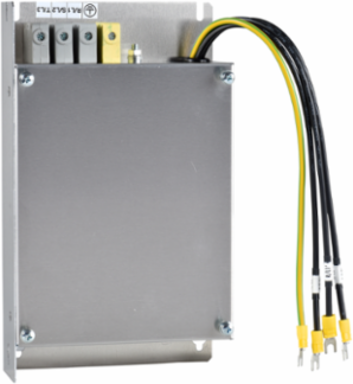

Schneider Electric VW3A31407 EMC Input Filter 3-Phase 47 A, IP20, Shock Resistant, -10-50 C

MPN: VW3A31407
PPN: SCH-VW3A31407
UNSPSC: 39121021

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$319.94

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric VW3A31407 EMC Input Filter is engineered to enhance the efficiency of 3-phase systems, offering robust protection with a current rating of 47 A. Designed with an IP20 rating, it is both shock resistant and capable of operating in a wide temperature range of -10 to 50 C, making it an ideal choice for various industrial applications. This filter is an essential component for ensuring electromagnetic compatibility, promoting both reliability and performance in your automation and control systems. Whether used in motors or AC drives, it plays a crucial role in minimizing electrical noise and ensuring optimal operation.

Features

Enable the drives to meet more stringent requirements
Reduce conducted emissions on the supply mains
Conforms to standard IEC 61800-3 category C1 or C6
Save space with drive mounting onto the filter.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Thailand

Complementary Attributes

Network Rated Voltage	200-240 V, 380-500 V

Line Rated Current	47 A

Important Information Attributes

Earth Leakage Current	45 mA 50 Hz, 20.6 mA 480 V 60 Hz, 42.8 mA 480 V 60 Hz
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	LXM23
Phase	three phase
Product Or Component Type	EMC input filter
Range Of Product	Altivar
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Thermal Losses	1.9 W ATV21HU75N419.3 W ATV31CU55N43.7 W ATV21HU55M3X3.9 W ATV21HD11N46.8 W ATV21HU75M3X
Tolerance	10 %
Certificate Agency	IEC 61800-3
Customs Code	8548000000

Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Electrical Connection	terminal 25 mm² 2 AWG
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	radio interference input filter
Returnability	Yes
Sustainable Packaging	No
Tightening Torque	4.5 N.m
Vibration Resistance	1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Product Compatibility	variable speed drive ATV320...C7.5 kW, 200...240 V three phaseservo drive LXM237.5 kW, ATV212HD11N4, ATV212HU55M3X, ATV212HU75M3X, ATV212HU75N4, ATV31CU55N4, ATV31CU75N4, LXM05AD57N4, LXM05BD57N4, LXM05CD57N4, ATV312HU55M3, ATV312HU75M3, ATV312HU55N4, ATV312HU75N4, variable speed drive ATV320...C5.5 kW, 200...240 V three phase
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Ambient Air Temperature For Operation	-10-50 °C-10-50 °C
Ip Degree Of Protection	IP20IP41 upper part)
Packaging Without Single Use Plastic	No
Relative Humidity	0-93 % IEC 68-2-3

Operating Altitude	<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
