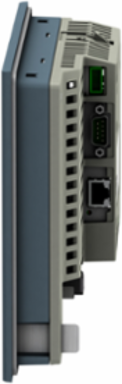

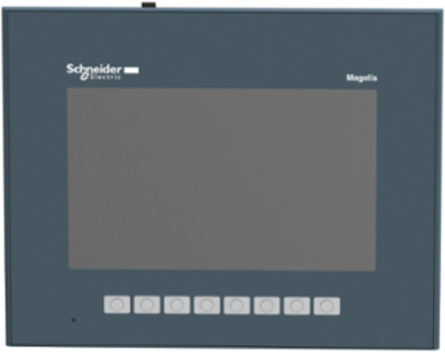

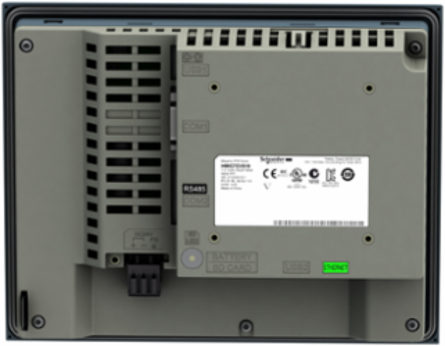

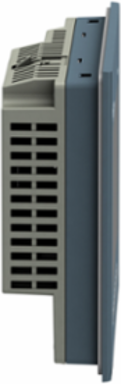

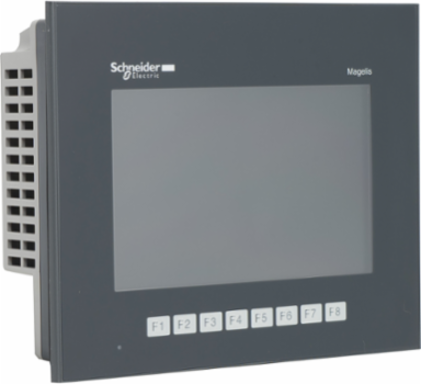

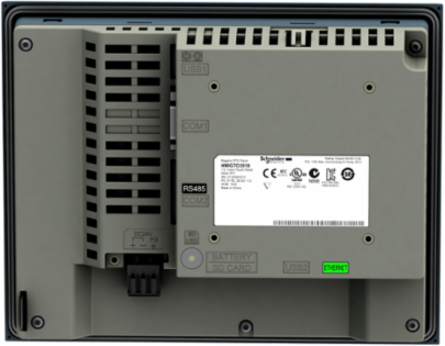

Harmony GTO Touchscreen Panel 7 Inch WVGA 800 x 480 Pixels
Harmony GTO Touchscreen Panel 7 Inch WVGA 800 x 480 Pixels
Harmony GTO Touchscreen Panel 7 Inch WVGA 800 x 480 Pixels
Harmony GTO Touchscreen Panel 7 Inch WVGA 800 x 480 Pixels
Harmony GTO Touchscreen Panel 7 Inch WVGA 800 x 480 Pixels
Schneider Electric

Schneider Electric HMIGTO3510 Harmony GTO Touchscreen Panel 7 Inch WVGA 800 x 480 Pixels

  • MPN: HMIGTO3510
  • PPN: SCH-HMIGTO3510
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3405.51

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7" color TFT LCD display, 800 x 480 pixels (WVGA), 8 function keys and 96MB EPROM. This touchscreen operator interface (HMI) is ideal for optimized information and communication. Ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. RS485 host port, ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, United Kingdom, Indonesia, United States, ZZ
    Depth60 mm

    Physical Attributes

    Display Size
    7 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bpsCOM2 serial link RJ45 RS485 187.5 kbps Siemens MPIEthernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W8 W when power is not supplied to external devices5 W when backlight is OFF5.5 W when backlight is dimmed, 12 W

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Brightness
    16 levels by touch panel, 16 levels by software
    Data Storage Equipment
    SD card, <= 32 GB, SDHC card, <= 32 GB
    Local Signalling
    status LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting upstatus LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmissionSD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
    Carbon Footprint Of The Distribution Phase [A4]
    0.18307, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.3 kg CO2 eq., 0.34768
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    493 kg CO2 eq., 492.51
    Local Publishable Date
    2026-03-25
    Stocking Flag
    Y
    Device Type
    HMI - Graphical display unit
    Traceability
    Yes
    Average Life Duration
    7 year(s)
    Use Carbon Footprint
    492.51
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    4
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Data Backed Up
    128 kB internal RAM SRAM)
    Display Type
    backlit colour TFT LCD
    Fixing Mode
    by 4 screw clamps
    Inrush Current
    30 A
    Processor Name
    ARM926EJ-S
    Product Mounting
    flush mounting
    Range Of Product
    Harmony GTO
    Returnability
    Yes
    Software Package
    Vijeo Designer
    Supply
    external source
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    620 kg CO2 eq.
    Touch Sensitive Zone
    1024 x 1024
    Vibration Resistance
    3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-21 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Display Color
    65536 colours
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide 7.5&quot; Wide TFT Smart Display during 10 years and maximum use rate at 12W, based on below function:& 10 - 7.5&quot; Wide Touchscreen panel& 10 - Status LED& 10 - SD Card Interface& 10 - Serial comunication interface (RS-485, RS-232C)& 10 - USB Interface (Type-A, mini-B)& 10 - Ethernet interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - IEC 61000-6-2& 10 - IEC 61131-2
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    1051.2
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; FR
    Height Nominal
    173 mm
    [Us] Rated Supply Voltage
    24 V DC
    F-gas Usage Performance
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle
    619.7017
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
    492.15
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
    -1.6348
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    492.51
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
    -1.6526
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
    2.5506
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    13050
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
    -30.955
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    1475.8
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
    2.3721
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    160.78
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    190.91
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -29.311
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
    4.7477
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    802.2
    Marine Aquatic Eutrophication (Kg Of N Equiv) Manufacturing [A1-a3]
    0.1316
    Materials For Recycling (Kg) End Of Life [C1-c4]
    0.3077
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]
    1.1307
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -5.9192
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
    1.4031
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    12.856
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    16090.6099
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    2.554
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    14421
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -32.566
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1370.7
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    12.856
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    14672.4209
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    2.5506
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    13050
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -30.955
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    3.7329
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    30.279
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    1.827
    Water Use (M3 Eq) Operational Energy Use [B6]
    19.941
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontTaiwanese (traditional Chinese), ASCII, Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean
    Downloadable ProtocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAYMitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
    Certificate AgencyCE, C-tick, KCC, cULus, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.3374, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]126 kg CO2 eq., 125.81
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint125.81
    End Of Life Carbon Footprint1.3374
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402012EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2513
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Control Button Type8 operation defined using Vijeo Designer push-button key F1...F8
    Display Resolution800 x 480 pixels WVGA
    Enclosure MaterialPPT
    Front MaterialPPT
    Memory Descriptionflash EPROM, 96 MB
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeadvanced touchscreen panel
    Resistance To Electrostatic Discharge6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Versionv5.9.4
    Supply Voltage Limits19.2-28.8 V
    Terminal Typetouchscreen display
    Touch Panelresistive film, 1000000 cycles
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402012EN
    Pep Verification Date2023-12-19
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %25
    Width Nominal218 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)1.533 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]3.0646
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]125.7
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]1.3364
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]125.81
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]1.3374
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]1564.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.6193
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]65.051
    Ecotoxicity (Fresh Water) (Ctue) Total Life Cycle8711.4753
    Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]0.1232
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]7072.4
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-26.121
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.53
    Impacts Related To Land Use/Soil Quality (-) Manufacturing [A1-a3]-3.8612
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]37.653
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-1.5498
    Materials For Recycling (Kg) Installation [A5]0.191
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]21.787
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]76.13
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.1504
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]4.0868
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]12.856
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1598.1
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.8789
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]65.077
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]34.012
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-1.611
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.856
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1551.2
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.6193
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]65.051
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.7329
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.438
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1370.7
    Water Use (M3 Eq) Manufacturing [A1-a3]26.362
    Customs Code8537109160

    Environment Attributes Main

    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Carbon Footprint
    620.18815
    Ambient Air Temperature For Storage
    -20-60 °C-20-60 °C
    Environmental Disclosure
    ENVPEP1402012EN
    Halogen Content Performance
    Product contains halogen above thresholds
    Nema Degree Of Protection
    NEMA 4X front panel (indoor use)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1402012EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Circularity ProfileENVEOLI1402012EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-12-19
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type

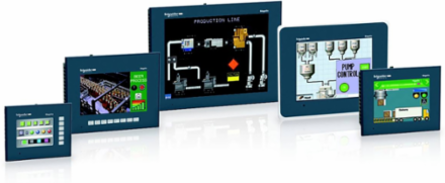

    advanced touchscreen panel
    Range Of ProductHarmony GTO

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLEUser replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$3405.51/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
