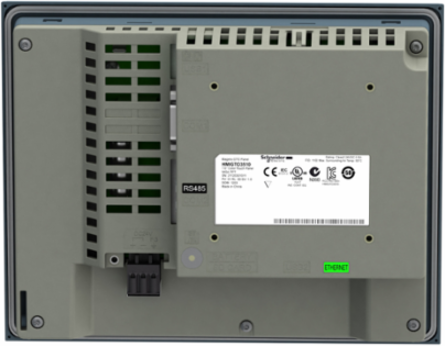

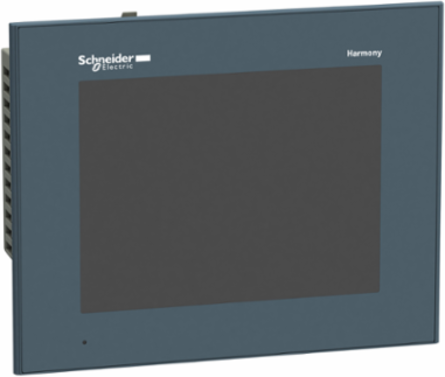

Schneider Electric HMIGTO4310 Harmony GTO 7.5 Inch Touchscreen Panel, 640 x 480 VGA, IP65, 96MB

  • MPN: HMIGTO4310
  • PPN: SCH-HMIGTO4310
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4029.48

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7.5" color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, Germany, France, United Kingdom, Indonesia, United States, ZZ
    Depth60 mm

    Physical Attributes

    Display Size7.5 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection TypeCOM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bpsCOM2 serial link RJ45 RS485 187.5 kbps Siemens MPIEthernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W8 W when power is not supplied to external devices5 W when backlight is OFF5.5 W when backlight is dimmed, 12 W

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Brightness16 levels by touch panel, 16 levels by software
    Data Storage EquipmentSD card, <= 32 GB, SDHC card, <= 32 GB
    Local Signallingstatus LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting upstatus LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmissionSD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
    Carbon Footprint Of The Distribution Phase [A4]0.18307, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.34768
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]493 kg CO2 eq., 492.51
    Local Publishable Date2026-03-25
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Use Carbon Footprint492.51
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution640 x 480 pixels VGA
    Enclosure MaterialPPT
    Front MaterialPPT
    Memory Descriptionflash EPROM, 96 MB
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeadvanced touchscreen panel
    Resistance To Electrostatic Discharge6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Versionv5.9.4
    Supply Voltage Limits19.2-28.8 V
    Terminal Typetouchscreen display
    Touch Panelresistive film, 1000000 cycles
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402012EN
    Pep Verification Date2023-12-19
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %25
    Width Nominal218 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)1.538 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]3.0646
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]125.7
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]1.3364
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]125.81
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]1.3374
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]1564.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.6193
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]65.051
    Ecotoxicity (Fresh Water) (Ctue) Total Life Cycle8711.4753
    Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]0.1232
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]7072.4
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-26.121
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.53
    Impacts Related To Land Use/Soil Quality (-) Manufacturing [A1-a3]-3.8612
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]37.653
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-1.5498
    Materials For Recycling (Kg) Installation [A5]0.191
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]21.787
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]76.13
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.1504
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]4.0868
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]12.856
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1598.1
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.8789
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]65.077
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]34.012
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-1.611
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.856
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1551.2
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.6193
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]65.051
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.7329
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.438
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1370.7
    Water Use (M3 Eq) Manufacturing [A1-a3]26.362
    Customs Code8537109170
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontKorean, Taiwanese (traditional Chinese), Japanese (ANK, Kanji), ASCII, Chinese (simplified Chinese)
    Downloadable ProtocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAYMitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
    Certificate AgencyCE, cULus, KCC, C-tick, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.3374, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]126 kg CO2 eq., 125.81
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint125.81
    End Of Life Carbon Footprint1.3374
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402012EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2513
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Data Backed Up512 KB internal RAM SRAM)
    Display Typebacklit colour TFT LCD
    Fixing Modeby 4 screw clamps
    Inrush Current30 A
    Processor NameARM926EJ-S
    Product Mountingflush mounting
    Range Of ProductHarmony GTO
    ReturnabilityYes
    Software PackageVijeo Designer
    Supplyexternal source
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint620 kg CO2 eq.
    Touch Sensitive Zone1024 x 1024
    Vibration Resistance3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-21 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Display Color65536 colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 7.5&quot; Wide TFT Smart Display during 10 years and maximum use rate at 12W, based on below function:& 10 - 7.5&quot; Wide Touchscreen panel& 10 - Status LED& 10 - SD Card Interface& 10 - Serial comunication interface (RS-485, RS-232C)& 10 - USB Interface (Type-A, mini-B)& 10 - Ethernet interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - IEC 61000-6-2& 10 - IEC 61131-2
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh1051.2
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
    Height Nominal173 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle619.7017
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]492.15
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-1.6348
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]492.51
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-1.6526
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]2.5506
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]13050
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-30.955
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]1475.8
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]2.3721
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]160.78
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]190.91
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-29.311
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]4.7477
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]802.2
    Marine Aquatic Eutrophication (Kg Of N Equiv) Manufacturing [A1-a3]0.1316
    Materials For Recycling (Kg) End Of Life [C1-c4]0.3077
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.1307
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-5.9192
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]1.4031
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle12.856
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle16090.6099
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]2.554
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]14421
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-32.566
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1370.7
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle12.856
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle14672.4209
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]2.5506
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]13050
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-30.955
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.7329
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]30.279
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]1.827
    Water Use (M3 Eq) Operational Energy Use [B6]19.941

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint620.18815
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402012EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel (indoor use)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1402012EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-55 °C
    Circularity ProfileENVEOLI1402012EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-12-19
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeadvanced touchscreen panel
    Range Of ProductHarmony GTO

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)

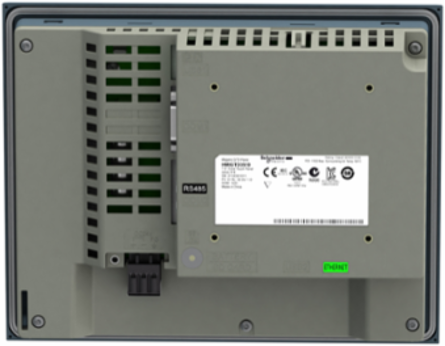

    Harmony GTO 7.5 Inch Touchscreen Panel, 640 x 480 VGA, IP65, 96MB

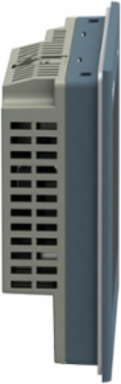

    Harmony GTO 7.5 Inch Touchscreen Panel, 640 x 480 VGA, IP65, 96MB

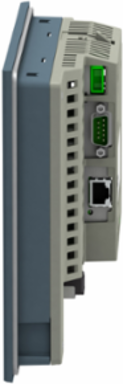

    Harmony GTO 7.5 Inch Touchscreen Panel, 640 x 480 VGA, IP65, 96MB

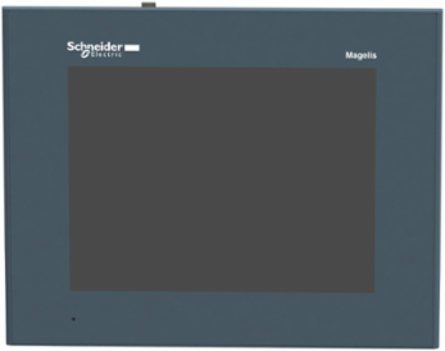

    Harmony GTO 7.5 Inch Touchscreen Panel, 640 x 480 VGA, IP65, 96MB

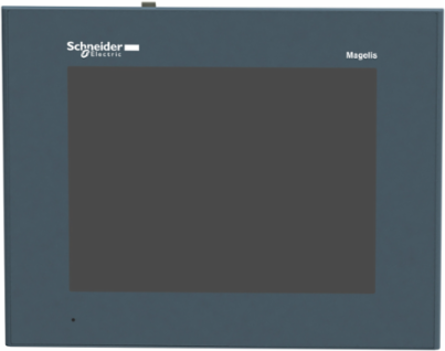

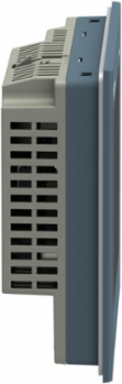

    Harmony GTO 7.5 Inch Touchscreen Panel, 640 x 480 VGA, IP65, 96MB
    Loading video…

    Similar Products

    Loading carousel layout...

    CAD$4029.48/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
