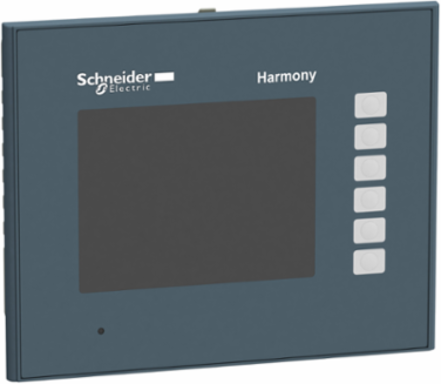

Harmony GTO Touchscreen Panel 3.5 Inch TFT 320x240 Resolution
Harmony GTO Touchscreen Panel 3.5 Inch TFT 320x240 Resolution
Schneider Electric

Schneider Electric HMIGTO1300 Harmony GTO Touchscreen Panel 3.5 Inch TFT 320x240 Resolution

  • MPN: HMIGTO1300
  • PPN: SCH-HMIGTO1300
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $810.38

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia
    Depth42 mm

    Physical Attributes

    Display Size
    3.5 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W5.2 W when power is not supplied to external devices, 4.2 W when backlight is OFF, 4.3 W when backlight is dimmed, 9.6 W

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Brightness
    16 levels by touch panel, 16 levels by software
    Downloadable Protocols
    Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols
    Vibration Resistance
    9.8 m/s² 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Carbon Footprint Of The Distribution Phase [A4]
    0.064075, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.1 kg CO2 eq., 0.13128
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    394 kg CO2 eq., 394.01
    Local Publishable Date
    2026-03-25
    Stocking Flag
    N
    Device Type
    HMI - Graphical display unit
    Traceability
    Yes
    Average Life Duration
    7 year(s)
    Use Carbon Footprint
    394.01
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1402027EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2513
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Control Button Type
    6 operation defined using Vijeo Designer push-button key F1...F6
    Display Resolution
    320 x 240 pixels QVGA
    Enclosure Material
    PPT
    Front Material
    PPT
    Memory Description
    flash EPROM, 64 MB
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    advanced touchscreen panel
    Resistance To Electrostatic Discharge
    6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance
    147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Version
    v5.9.4
    Supply Voltage Limits
    19.2-28.8 V
    Terminal Type
    touchscreen display
    Touch Panel
    resistive film, 1000000 cycles
    Type Of Cooling
    natural convection
    Display Color
    65536 colours
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide 3.5" TFT Smart Display during 10 years and maximum use rate at 9.6W, based on below function:& 10 - 3.5" Wide Touchscreen panel& 10 - Status LED& 10 - SD Card Interface& 10 - Serial comunication interface (RS-485, RS-232C)& 10 - USB Interface (Tyepe-A, mini-B)& 10 - Ethernet interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - EN 61131-2& 10 - IEC 61000-6-2
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    840.96
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; FR
    Height Nominal
    106 mm
    [Us] Rated Supply Voltage
    24 V DC
    F-gas Usage Performance
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    45.099
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    45.161
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    575.62
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    10440
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
    -4.0067
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    5657.9
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
    -4.8682
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
    0.5962
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
    3.7982
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    641.76
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    7.8226
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -1.9529
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
    3.2695
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    6.7555
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    12134.3125
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    0.8939
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    11537
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -4.5585
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1096.5
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    6.7555
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    568.87
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    10440
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -3.9597
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    1.3974
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    11.274
    Water Use (M3 Eq) Manufacturing [A1-a3]
    12.679
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontChinese (simplified Chinese), ASCII (European characters), Japanese (ANK, Kanji), Korean, Taiwanese (traditional Chinese)
    Local Signallingstatus LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF)
    Certificate AgencyC-tick, cULus, CE, KCC, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.37608, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]45 kg CO2 eq., 45.161
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint45.161
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Data Backed Up128 kB internal RAM SRAM)
    Display Typebacklit colour TFT LCD
    Fixing Modeby 4 screw clamps
    Inrush Current30 A
    Processor NameARM926EJ-S
    Product Mountingflush mounting
    Range Of ProductHarmony GTO
    ReturnabilityYes
    Software PackageVijeo Designer
    Supplyexternal source
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint440 kg CO2 eq.
    Touch Sensitive Zone1024 x 1024
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402027EN
    Pep Verification Date2023-12-29
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential, In %8
    Width Nominal132 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)669.000 g
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]2.4517
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]393.72
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]394.01
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.3646
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]6.6481
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]595.37
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]96.447
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]100.09
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-2.6854
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]18.176
    Materials For Recycling (Kg) Installation [A5]0.073
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]60.904
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]0.5054
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle6.7555
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.047
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]588.29
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]1.4637
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]6.6649
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]12.671
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle6.7085
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.047
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]1.3646
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]6.6481
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.3974
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.296
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1096.5
    Water Use (M3 Eq) Operational Energy Use [B6]15.953

    Environment Attributes Main

    Ip Degree Of Protection
    IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Silicon Free
    No
    Ambient Air Temperature For Operation
    0-50 °C
    Circularity Profile
    ENVEOLI1402027EN
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    NEMA 4X front panel (indoor use)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1402027EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint439.742435
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402027EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-12-29
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    advanced touchscreen panel
    Range Of ProductHarmony GTO

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLE, User replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$810.38/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
