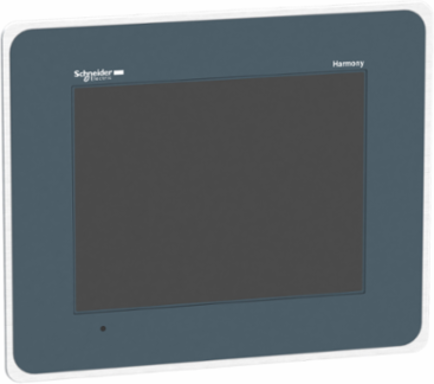

Schneider Electric HMIGTO5315 Harmony GTO 10.4 Inch Touchscreen Panel, 640 x 480 VGA, Stainless Steel

  • MPN: HMIGTO5315
  • PPN: SCH-HMIGTO5315
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with a stainless steel frame, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Mexico, United States
    Depth57 mm

    Physical Attributes

    Display Size
    10.4 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Brightness
    16 levels by touch panel, 16 levels by software
    Data Storage Equipment
    SD card, <= 32 GB, SDHC card, <= 32 GB
    Fixing Mode
    by 8 nuts, by 4 L brackets
    Vibration Resistance
    3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Carbon Footprint Of The Distribution Phase [A4]
    0.3923, 0.4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.7 kg CO2 eq., 0.73658
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    698 kg CO2 eq., 697.73
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    HMI - Graphical display unit
    Traceability
    Yes
    Average Life Duration
    7 year(s)
    Distribution Carbon Footprint
    0.3923
    End Of Life Carbon Footprint
    3.1312
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1402026EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2514
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Data Backed Up
    512 KB internal RAM SRAM)
    Display Type
    backlit colour TFT LCD
    Front Material
    stainless steel 304
    Memory Description
    flash EPROM, 96 MB
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    advanced touchscreen panel
    Range Of Product
    Harmony GTO
    Returnability
    No
    Software Package
    Vijeo Designer
    Supply
    external source
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    907 kg CO2 eq.
    Touch Sensitive Zone
    1024 x 1024
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1402026EN
    Pep Verification Date
    2023-11-02
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; US
    Recyclability Potential, In %
    26
    Width Nominal
    316.5 mm
    F-gas Free
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    3.439 kg
    Take-back
    No
    Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]
    1.0771
    Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]
    0.3255
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    204.45
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]
    0.7039
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
    3.1299
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    204.77
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    697.73
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
    -3.6931
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
    5.4656
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    18488
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
    -70.42
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
    5.0182
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    578.45
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    347.2
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -67.207
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    142.8
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
    -2.3023
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
    1.0798
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]
    2.3917
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -12.704
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
    2.56
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
    5.7897
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    24.045
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    23293.1238
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    5.4728
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    20430
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -73.854
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1941.8
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    24.045
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    2625.6
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
    7.6718
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
    149.39
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    7.8742
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -7.272
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    1941.8
    Water Use (M3 Eq) Manufacturing [A1-a3]
    46.348
    Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]
    -1.7379
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontChinese (simplified Chinese), Japanese (ANK, Kanji), Taiwanese (traditional Chinese), Korean, ASCII
    Downloadable ProtocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
    Local Signallingstatus LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
    Certificate AgencyC-tick, cULus, CE, KCC, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]3.1312, 3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]205 kg CO2 eq., 204.77
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint204.77
    Use Carbon Footprint697.73
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution640 x 480 pixels VGA
    Enclosure MaterialPPT
    Inrush Current30 A
    Processor NameARM926EJ-S
    Product Mountingflush mounting
    Provided Equipment1 protective cover
    Resistance To Electrostatic Discharge6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Versionv5.9.4
    Supply Voltage Limits19.2-28.8 V
    Terminal Typetouchscreen display
    Touch Panelresistive film, 1000000 cycles
    Type Of Coolingnatural convection
    Display Color65536 colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 12.1&quot; TFT Smart Display during 10 years and maximum use rate at 17W, based on below function:& 10- 12.1-inch Touchscreen panel.& 10- SD Card Interface& 10- Serial comunication interface (RS-422/485, RS-232C)& 10- USB Interface (Tyepe-A, minir-B)& 10- Ethernet interface
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh1489.2
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
    Height Nominal258.5 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]4.3415
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle905.8861
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Distribution [A4]0.3923
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]697.21
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-3.6557
    Climate Change - Total ( Kg Co2 Eq.) Distribution [A4]0.3923
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]3.1312
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]2649.6
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]7.6718
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]149.39
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]1900.5
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]10019
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-57.808
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]4.111
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]6.7259
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1136.4
    Materials For Recycling (Kg) Installation [A5]0.404
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]34.697
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]107.85
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.6297
    Terrestrial Eutrophication (Mole Of N Equiv) Distribution [A4]0.013
    Terrestrial Eutrophication (Mole Of N Equiv) End Of Life [C1-c4]0.0189
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]24.045
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]2700
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]8.221
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]149.43
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]50.366
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-3.4331
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]24.045
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]5.4656
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]18488
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-70.42
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]7.8742
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]42.492
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]3.8389
    Water Use (M3 Eq) Operational Energy Use [B6]28.25

    Environment Attributes Main

    Ip Degree Of Protection
    IP20 IEC 60529 rear panel), IP66K IEC 60529 front panel), IP66K DIN 40050-9 front panel)
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Silicon Free
    No
    Ambient Air Temperature For Operation
    0-55 °C
    Circularity Profile
    ENVEOLI1402026EN
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    NEMA 4X front panel (indoor use)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1402026EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint906.76008
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402026EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-11-02
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type

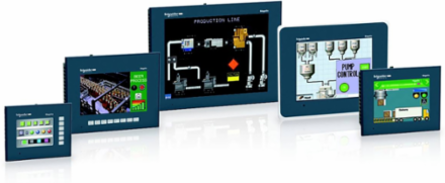

    advanced touchscreen panel
    Range Of Product
    Harmony GTO
    Provided Equipment1 protective cover

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLE, User replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)
    Loading video…

    Accessories

    Loading carousel layout...

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
