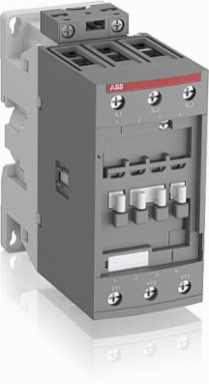

ABB AF40-30-00-41 Contactor 3 Pole 24-60V Control Voltage, 70A Switching Capacity
- MPN: AF40-30-00-41
- UPC: 888614000797
- PPN: ABB-AF40-30-00-41
- UNSPSC: 39121529
CAD
$530.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF40-30-00-41 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) or 30 hp / 480 V UL and switching power circuits up to 70 A (AC-1) or 60 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Dimensions
- Product Net Width
- 55 mm
- Product Net Height
- 125.5 mm
Product Net Depth / Length111 mm
Product Net Weight0.97 kg
Technical
- Number of Main Contacts NO
- 3
- Number of Auxiliary Contacts NO
- 0
- Standards
- IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
- Rated Frequency (f)
- Control Circuit 50 / 60 HzMain Circuit 50 / 60 Hz
- Rated Operational Current AC-1 (Ie)
- (690 V) 40 °C 70 A(690 V) 60 °C 60 A(690 V) 70 °C 50 A
- Rated Operational Current AC-3e (Ie)
- (415 V) 60 °C 40 A(440 V) 60 °C 40 A(500 V) 60 °C 35 A(690 V) 60 °C 25 A(380 / 400 V) 60 °C 40 A(220 / 230 / 240 V) 60 °C 40 A
- Rated Operational Power AC-3e (Pe)
- (415 V) 22 kW(440 V) 22 kW(500 V) 22 kW(690 V) 22 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW
- Maximum Breaking Capacity
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
- Rated Operational Current DC-1 (Ie)
- (110 V) 2 Poles in Series, 40 °C 70 A(110 V) 2 Poles in Series, 60 °C 60 A(110 V) 2 Poles in Series, 70 °C 50 A(110 V) 3 Poles in Series, 40 °C 70 A(110 V) 3 Poles in Series, 60 °C 60 A(110 V) 3 Poles in Series, 70 °C 50 A(220 V) 3 Poles in Series, 40 °C 70 A(220 V) 3 Poles in Series, 60 °C 60 A(220 V) 3 Poles in Series, 70 °C 50 A(72 V) 1-Pole, 40 °C 70 A(72 V) 1-Pole, 60 °C 60 A(72 V) 1-Pole, 70 °C 50 A(72 V) 2 Poles in Series, 40 °C 70 A(72 V) 2 Poles in Series, 60 °C 60 A(72 V) 2 Poles in Series, 70 °C 50 A(72 V) 3 Poles in Series, 40 °C 70 A(72 V) 3 Poles in Series, 60 °C 60 A(72 V) 3 Poles in Series, 70 °C 50 A
- Rated Operational Current DC-5 (Ie)
- (110 V) 2 Poles in Series, 40 °C 70 A(110 V) 2 Poles in Series, 60 °C 60 A(110 V) 2 Poles in Series, 70 °C 50 A(110 V) 3 Poles in Series, 40 °C 70 A(110 V) 3 Poles in Series, 60 °C 60 A(110 V) 3 Poles in Series, 70 °C 50 A(220 V) 3 Poles in Series, 40 °C 70 A(220 V) 3 Poles in Series, 60 °C 60 A(220 V) 3 Poles in Series, 70 °C 50 A(72 V) 1-Pole, 40 °C 70 A(72 V) 1-Pole, 60 °C 60 A(72 V) 1-Pole, 70 °C 50 A(72 V) 2 Poles in Series, 40 °C 70 A(72 V) 2 Poles in Series, 60 °C 60 A(72 V) 2 Poles in Series, 70 °C 50 A(72 V) 3 Poles in Series, 40 °C 70 A(72 V) 3 Poles in Series, 60 °C 60 A(72 V) 3 Poles in Series, 70 °C 50 A
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Control Circuit Voltage (Uc)
- 50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation -
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1/2x 4 ... 35 mm²Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²Rigid Stranded 1/2x 6 ... 35 mm²
- Wire Stripping Length
- Control Circuit 10 mmMain Circuit 16 mm
- Terminal Type
- Screw Terminals
Number of Main Contacts NC0
Number of Auxiliary Contacts NC0
Rated Operational VoltageMain Circuit 690 V
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A
Rated Operational Current AC-3 (Ie)(415 V) 60 °C 40 A(440 V) 60 °C 40 A(500 V) 60 °C 35 A(690 V) 60 °C 25 A(380 / 400 V) 60 °C 40 A(220 / 230 / 240 V) 60 °C 40 A
Rated Operational Power AC-3 (Pe)(400 V) 18.5 kW(415 V) 22 kW(440 V) 22 kW(500 V) 22 kW(690 V) 22 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A
Maximum Electrical Switching Frequency(AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour
Rated Operational Current DC-3 (Ie)(110 V) 2 Poles in Series, 40 °C 70 A(110 V) 2 Poles in Series, 60 °C 60 A(110 V) 2 Poles in Series, 70 °C 50 A(110 V) 3 Poles in Series, 40 °C 70 A(110 V) 3 Poles in Series, 60 °C 60 A(110 V) 3 Poles in Series, 70 °C 50 A(220 V) 3 Poles in Series, 40 °C 70 A(220 V) 3 Poles in Series, 60 °C 60 A(220 V) 3 Poles in Series, 70 °C 50 A(72 V) 1-Pole, 40 °C 70 A(72 V) 1-Pole, 60 °C 60 A(72 V) 1-Pole, 70 °C 50 A(72 V) 2 Poles in Series, 40 °C 70 A(72 V) 2 Poles in Series, 60 °C 60 A(72 V) 2 Poles in Series, 70 °C 50 A(72 V) 3 Poles in Series, 40 °C 70 A(72 V) 3 Poles in Series, 60 °C 60 A(72 V) 3 Poles in Series, 70 °C 50 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-4-1 690 Vacc. to UL/CSA 600 V
Maximum Mechanical Switching Frequency3600 cycles per hour
Operate TimeBetween Coil De-energization and NC Contact Closing 19 ... 105 msBetween Coil De-energization and NO Contact Opening 17 ... 100 msBetween Coil Energization and NC Contact Opening 38 ... 95 msBetween Coil Energization and NO Contact Closing 42 ... 100 ms
Mounting by Screws (not supplied)2 x M4 or 2 x M6 screws placed diagonally
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Classifications
- Object Classification Code
- Q
- ETIM 5
- EC000066 - Magnet contactor, AC-switching
- IDEA Granular Category Code (IGCC)
- 4758 >> Iec Contactors
ETIM 4EC000066 - Magnet contactor, AC-switching
eClassV11.0 : 27371003
E-Number (Finland)3706596
Environmental
- Ambient Air Temperature
- Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
- Maximum Operating Altitude Permissible
- Without Derating 3000 m
- Resistance to Shock acc. to IEC 60068-2-27
- Closed, Shock Direction: A 25 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 gOpen, Shock Direction: B1 5 g
Climatic WithstandCategory B according to IEC 60947-1 Annex Q
Resistance to Vibrations acc. to IEC 60068-2-65 ... 300 Hz 3 g closed position / 3 g open position
RoHS StatusFollowing EU Directive 2011/65/EU
Technical UL/CSA
- NEMA Size
- 2
- Horsepower Rating NEMA
- (115 V AC) Single Phase 3 Hp(200 V AC) Three Phase 10 Hp(230 V AC) Single Phase 7-1/2 Hp(230 V AC) Three Phase 15 Hp(460 V AC) Three Phase 25 Hp(575 V AC) Three Phase 25 Hp
- Horsepower Rating UL/CSA
- (120 V AC) Single Phase 3 hp(200 ... 208 V AC) Three Phase 10 hp(220 ... 240 V AC) Three Phase 15 hp(240 V AC) Single Phase 7-1/2 hp(440 ... 480 V AC) Three Phase 30 hp(550 ... 600 V AC) Three Phase 40 hp
- Connecting Capacity Control Circuit UL/CSA
- Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
Continuous Current Rating NEMA45 A
General Use Rating UL/CSA(600 V AC) 60 A
Connecting Capacity Main Circuit UL/CSARigid Stranded 1/2x 10-2 AWG
Tightening Torque UL/CSAControl Circuit 11 in·lbMain Circuit 35 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
