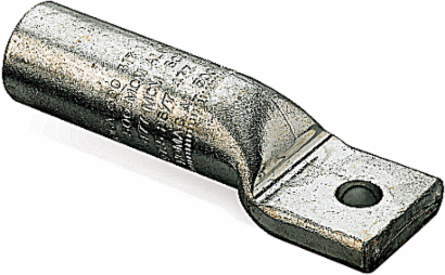

Blackburn AL 500-48 Aluminum One-Hole NEMA Lugs 5-7/16 Inch Length Dual-Rated for Aluminum & Copper
- MPN: AL 500-48
- UPC: 783786693924
- PPN: T-B-AL 500-48
CAD
$69.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum One-Hole NEMA Lugs, concentric 500 and 477 compact 600, ACSR 397.5 (26/7) and 477 (18/1), bolt size 1/2, installing dies 106A,300,317,1 5/16,14A
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.45 lbs. Each
Outer Dimensions (inches)7.5x6x6.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
- Standard
- ANSI C119.4
- Conductor Range
- 500
IGCC4668 Wire or cable compression connector
TypeAluminum One-Hole NEMA Lugs
ApplicationGeneral purpose lugs for Aluminum and Copper terminations.
SizeLength 5-7/16 inches
MaterialAluminum
