NSI Industries

NSI Industries 4T Dual Rated Lug 4-14 AWG

  • MPN: 4T
  • PPN: NSI-4T
  • UNSPSC: 39121466

CAD

$1.16

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

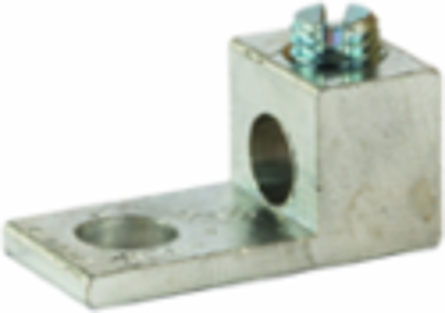

1 Port Aluminum Lug 4-14 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Features

  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors

Specifications

Key Specifications

Country of OriginUnited States
Width0.5 in
Collection Folder4T
MATERIAL6061T-6 Aluminum Alloy
WARRANTY1 Year
Field ApplicationTerminate
INNER WIDTH4.35
INNER LENGTH5.85
Sub-DivisionElectrical-E H2
PRODUCT FAMILYConnectivity
Product SeriesT
Tang Thickness0.094 IN
Wire Range4 AWG - 14 AWG
Mounting Hole Position0.25 IN
Length1.06 in
Height0.5 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT2.5
DivisionElectrical H1
INNER WEIGHT1.35
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Future PlanRebrand as Polaris
Conductor TypeCopper, Aluminum
Tang Width0.5 IN
Tang Length0.69 IN
Dual Rated Lug 4-14 AWG
