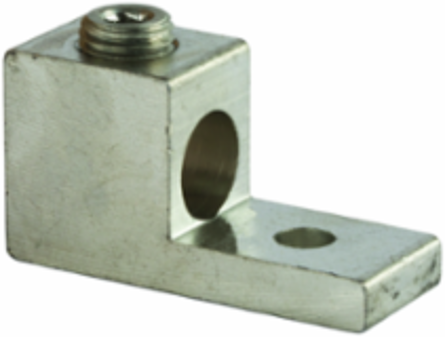

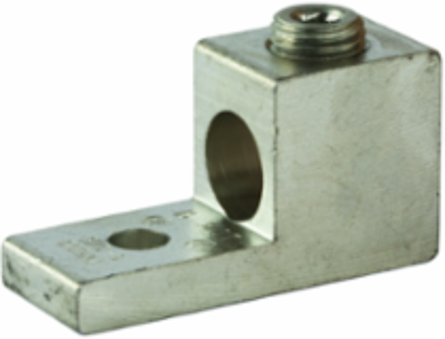

NSI Industries 500T Dual Rated Lug 500-4
- MPN: 500T
- PPN: NSI-500T
- UNSPSC: 39121466
CAD
$13.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1 Port Aluminum Lug 500 MCM - 4 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .
Features
- Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 1.2 in
- Collection Folder
- 500T
- MATERIAL
- 6061T-6 Aluminum Alloy
- WARRANTY
- 1 Year
- Field Application
- Terminate
- INNER WIDTH
- 4.35
- INNER LENGTH
- 5.85
- Sub-Division
- Electrical-E H2
- PRODUCT FAMILY
- Connectivity
- Product Series
- T
- Tang Thickness
- 0.31 IN
- Wire Range
- 500 MCM - 4 AWG
- Mounting Hole Position
- 0.63 IN
- Tang Length
- 1.63 IN
Length2.75 in
Height1.41 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT2.4
DivisionElectrical H1
INNER WEIGHT1.205
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Future PlanRebrand as Polaris
Conductor TypeCopper, Aluminum
Tang Width1.2 IN
Hex Wrench Size8-Mar IN
