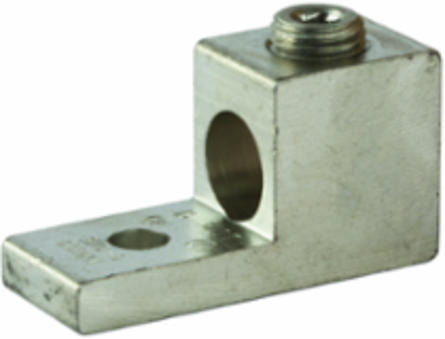

NSI Industries 3/0T Aluminum Dual-Rated Single Lug 3/0-6 AWG

  • MPN: 3/0T
  • PPN: NSI-3/0T
  • UNSPSC: 39121466

CAD

$4.43

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Aluminum Dual-Rated Single Lug 3/0-6 AWG with 1/4 Inch bolt size for use with copper or aluminum conductors. These Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Features

  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • 1/4" Bolt Size
  • Rated 600 volts (2000V max. per UL486B)

Specifications

Key Specifications

Country of OriginUnited States
Width0.7 in
Collection Folder3/0T
MATERIAL6061T-6 Aluminum Alloy
WARRANTY1 Year
Field ApplicationTerminate
INNER WIDTH6.15
INNER LENGTH8.75
Sub-DivisionElectrical-E H2
PRODUCT FAMILYConnectivity
Product SeriesT
Future PlanRebrand as Polaris
Conductor TypeCopper, Aluminum
Tang Width0.7 IN
Hex Wrench Size16-Mar IN
NPD Date Building Tech2023-05-12T00:00:00.000Z
Length1.875 in
Height0.89 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT3.1
DivisionElectrical H1
INNER WEIGHT3.23
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Environmental Temperature90C
Tang Thickness0.145 IN
Wire Range3/0 AWG - 6 AWG
Mounting Hole Position0.5 IN
Tang Length0.85 IN
Aluminum Dual-Rated Single Lug 3/0-6 AWG
