NSI Industries 2-250T Dual Rated Lug Two 250-6
- MPN: 2-250T
- PPN: NSI-2-250T
- UNSPSC: 39121466
CAD
$12.81
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

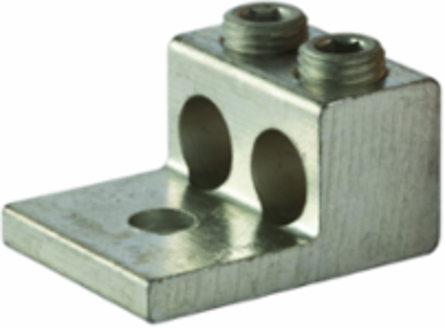

2 Port Aluminum Lug 250 MCM - 6 AWG Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.
Features
- Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 1.63 in
- Collection Folder
- 2-250T
- MATERIAL
- 6061T-6 Aluminum Alloy
- WARRANTY
- 1 Year
- Field Application
- Terminate
- INNER WIDTH
- 6.15
- INNER LENGTH
- 8.75
- Sub-Division
- Electrical-E H2
- PRODUCT FAMILY
- Connectivity
- Product Series
- 2-T
- Future Plan
- Rebrand as Polaris
- Conductor Type
- Copper, Aluminum
- Tang Width
- 1.63 IN
- Hex Wrench Size
- 16-May IN
Length2.56 in
Height1.02 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT3.15
DivisionElectrical H1
INNER WEIGHT1.835
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Number of Conductors/Circuits/Terminals2
Tang Thickness0.22 IN
Wire Range250 MCM - 6 AWG
Mounting Hole Position0.63 IN
Tang Length1.69 IN
