NSI Industries

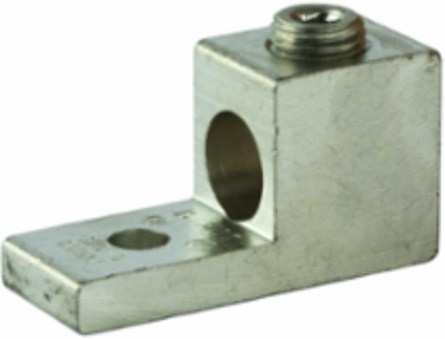

NSI Industries 600T Aluminum Single Lug 600 MCM-2 AWG Dual Rated

  • MPN: 600T
  • UPC: 066238100110
  • PPN: NSI-600T
  • UNSPSC: 39121466

CAD

$15.36

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

1 Port Aluminum Lug 600 MCM - 2 AWG Aluminum Single Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Features

  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors

Specifications

Key Specifications

Country of OriginUnited States
Width1.38 in
Collection Folder600T
MATERIAL6061T-6 Aluminum Alloy
WARRANTY1 Year
Field ApplicationTerminate
INNER WIDTH4.35
INNER LENGTH5.85
Sub-DivisionElectrical-E H2
PRODUCT FAMILYConnectivity
Product SeriesT
Future PlanRebrand as Polaris
Conductor TypeCopper, Aluminum
Tang Width1.38 IN
Hex Wrench Size8-Mar IN
Length3.18 in
Height1.51 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT2.4
DivisionElectrical H1
INNER WEIGHT1.785
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Environmental Temperature90C
Tang Thickness0.38 IN
Wire Range600 MCM - 2 AWG
Mounting Hole Position0.63 IN
Tang Length1.93 IN
Aluminum Single Lug 600 MCM-2 AWG Dual Rated
