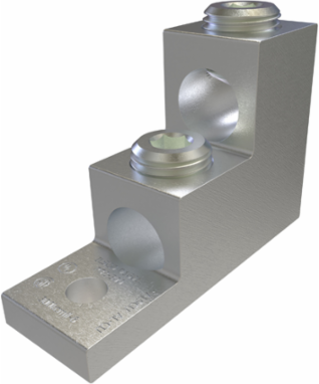

Ilsco PB2-300 Aluminum Panelboard Lug, Dual Rated, Conductor Range 300-6, 2 Ports, 1 Hole, 5/16in Bolt Size, Tin Plated, UL, CSA
Ilsco PB2-300 Aluminum Panelboard Lug, Dual Rated, Conductor Range 300-6, 2 Ports, 1 Hole, 5/16in Bolt Size, Tin Plated, UL, CSA
- MPN: PB2-300
- UPC: 0783669184204
- PPN: ILC-PB2-300
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$45.74/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.453
- Drive Type Main
- Internal Hex
- Height (mm)
- 50.8
- Mounting Hole Diameter (IN)
- 0.328
- Mounting Hole Spacing (mm)
- 0
- Tang Length (mm)
- 25.4
- Tang Thickness (mm)
- 7.9248
- Weight BX (LB)
- 1.5913
- Width (mm)
- 25.2222
Drive Size Main5/16
Height BX (IN)2.25
Length (mm)76.2
Mounting Hole Diameter (mm)8.3312
Tang Length (IN)1
Tang Thickness (IN)0.312
Tang Width (mm)25.2222
Width BX (IN)5
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Number of Ports / Wireways
- 2
Contains DE-OX®No
Number of Conductors2
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 300 kcmil - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)300 kcmil - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366918420
Specifications
- Height
- 2 in | 50.8 mm
- Weight
- 0.23 lbs
Length3 in | 76.2 mm
Width0.993 in | 25.2222 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
- Wire Binding Screw Size
- 11/16
Number of Wire Binding Screws per Port1
Wire Binding Torque275
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
