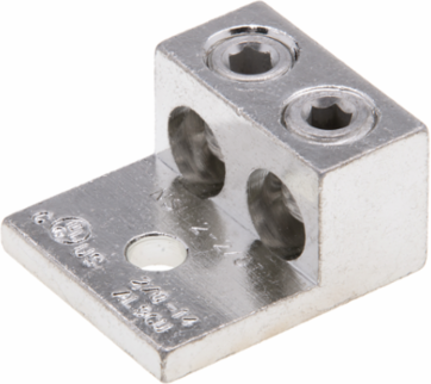

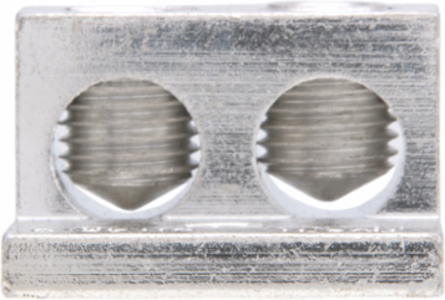

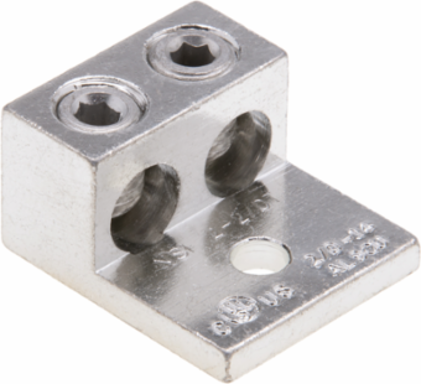

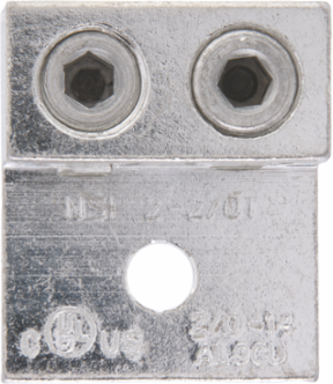

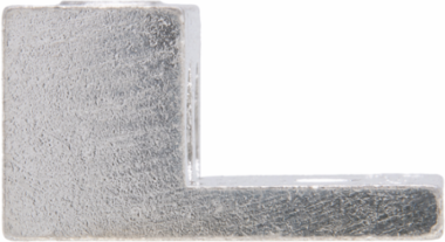

NSI Industries 2-2/0T Dual Rated Lug Two 2/0-14
- MPN: 2-2/0T
- PPN: NSI-2-2/0T
- UNSPSC: 39121466
CAD
$5.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2 Port Aluminum Lug 2/0 - 14 AWG Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.
Features
- Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
Specifications
Key Specifications
- Country of Origin
- India
- Width
- 1.25 in
- Collection Folder
- 2-2/0T
- MATERIAL
- 6061T-6 Aluminum Alloy
- WARRANTY
- 1 Year
- Field Application
- Terminate
- INNER WIDTH
- 4.45
- INNER LENGTH
- 5.85
- Sub-Division
- Electrical-E H2
- PRODUCT FAMILY
- Connectivity
- Product Series
- 2-T
- Future Plan
- Rebrand as Polaris
- Conductor Type
- Copper, Aluminum
- Tang Width
- 1.25 IN
- Hex Wrench Size
- 16-Mar IN
Length1.47 in
Height0.79 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT3.05
DivisionElectrical H1
INNER WEIGHT1.755
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Number of Conductors/Circuits/Terminals2
Tang Thickness0.19 IN
Wire Range2/0 AWG - 14 AWG
Mounting Hole Position0.44 IN
Tang Length0.85 IN
