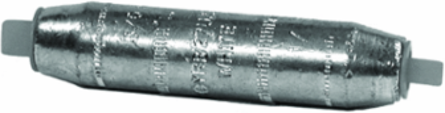

Burndy YRB44U34 HYREDUCERTM Reducer Splice 1000 kcmil x 500 kcmil, 1.46 Inch OD, Yellow, UL Listed
- MPN: YRB44U34
- UPC: 781810053980
- PPN: BUR-252092
CAD
$194.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al-Cu&CU-AL Hy reducer splice, 1000 kcmil(1.152Dia.)61Str(Barrel A,For Cu&Al), 500 kcmil(.813Dia)(Barrel B for Al&Cu), Yellow, 936 Index.
Features
- Features: HYREDUCER Type YRB Reducer Butt Splice Is Designed To Splice Two Different Conductor Sizes And Is UL Listed For Aluminum To Copper And Aluminum To Aluminum Applications, Constant Outside Diameters, Electro Tin-Plated
Documentation & Downloads
Specifications

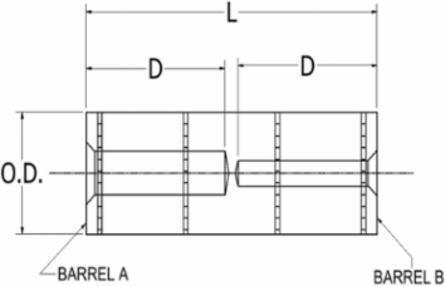

Dimensions
- Dimension - B Length fraction
- 2-1/4 in
- Dimension - L Length Overall mm
- 141 mm
- Dimension - Outside Diameter inch
- 1.46 in
Dimension - B Length inch2.25 in
Dimension - Length Overall inch5.57 in
Dimension - Strip Length inch2-5/16
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size A
- 1000
- Conductor - AL Str Size B
- 500
- Conductor - Copper Str Size
- 1000
- Conductor - Copper Str Size B Range
- 500
Conductor - AL Str Size A Range1000
Conductor - AL Str Size B Range500
Conductor - Copper Str Size B500
General
- Application
- For Splicing Two Different Size Wires, Aircraft Applications (Flexible Cables)
- Connector Type
- Reducer
- Material
- Aluminum
- Plating Type
- Tin - Electro Plated
- Temperature Rating
- 194
- Type
- YRV-L
- UPC 12 Digit
- 7818100539800
Color CodeYellow
Die Index936
PlatedY
Sub BrandHYREDUCER
Trade NameHYREDUCER™
UPC781810053980
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
