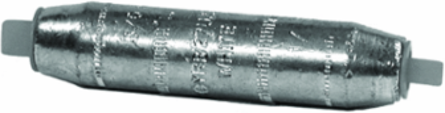

Burndy YRB39U36 HYREDUCER Aluminum Reducer Splice, 700-750 kcmil to 600 kcmil, UL Listed
- MPN: YRB39U36
- UPC: 781810001141
- PPN: BUR-252310
CAD
$245.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminium Hyreducer, 700-750 kcmil, 900 kcmil Compact Al (Groove A), 600 kcmil (Groove B), 27AB 936 Index.
Features
- Features: HYREDUCER Type YRB Reducer Butt Splice Is Designed To Splice Two Different Conductor Sizes And Is UL Listed For Aluminum To Copper And Aluminum To Aluminum Applications, Constant Outside Diameters, Electro Tin-Plated: Minimizes Installation Dies And Provides A Smooth Profile For Easy Taping, Provides Durable Long Lasting Corrosion Resistance, Factory Prefilled With BURNDYs PENETROX Oxide Inhibiting Compound: Contains Homogeneously Suspended Conductive Metallic Particles Which Penetrate Oxides Between Conductor Strands And Forms An Air Tight Connection, Solid Center Barrier: Provides Center Stop For Correct Cable Insertion And Aids The Thorough Penetration Of PENETROX Oxide Inhibiting Compound Between Conductor Strands, Connectors Are Clearly Marked With Catalog Number, Wire Size, And Color-Coded Die Index: Provides Clear, Easy To Use Information To Lower Installed Costs, Each Barrel End Has A Plastic End Cap: Keeps The Connector Barrels Free Of Foreign Materials, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750 Tool, U39ART-2 Die, (4), Y46 Tool, U39ART-2 Die With PUADP-1 Adapter, (4), Conductor Type: Run: Commercial Stranded Aluminum, Tap: Commercial Stranded Aluminum, Commercial Stranded Copper, Wire Strip Length: 2-7/8 IN, Die Index: 936 Element A, Color Code: Yellow
Documentation & Downloads
Specifications

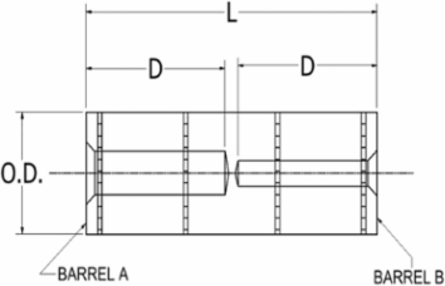

Dimensions
- Dimension - B Length fraction
- 2-1/4 in
- Dimension - L Length Overall mm
- 141 mm
- Dimension - Outside Diameter inch
- 1.46 in
Dimension - B Length inch2.25 in
Dimension - Length Overall inch5.57 in
Dimension - Strip Length inch2-5/16
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size A
- 700 kcmil;715 kcmil;750 kcmil
- Conductor - AL Str Size B
- 600 kcmil
- Conductor - Copper Str Size
- 700;750
- Conductor - Copper Str Size A Range
- 700 kcmil-750 kcmil
- Conductor - Copper Str Size B Range
- 600 kcmil
Conductor - AL Str Size A Range700 kcmil-750 kcmil
Conductor - AL Str Size B Range600 kcmil
Conductor - Copper Str Size A700 kcmil;750 kcmil
Conductor - Copper Str Size B600 kcmil
General
- Application
- For Splicing, Aluminum To Copper And Aluminum To Aluminum
- Connector Type
- Reducer
- Material
- Aluminum
- Plated
- Y
- Sub Brand
- HYREDUCER
- Trade Name
- HYREDUCER™
- UPC
- 781810001141
Color CodeYellow
Die Index936
Physical Attribute - Number of Crimps Required4
Plating TypeTin - Electro Plated
Temperature Rating194
TypeYRV-L
UPC 12 Digit7818100011411
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
