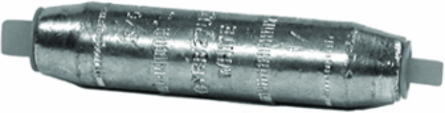

Burndy YRB39U31 Aluminum Reducer 5.57 Inch Overall Length, 700-750 kcmil to 350 kcmil, UL Listed
- MPN: YRB39U31
- UPC: 781810740170
- PPN: BUR-252085
CAD
$196.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Electro tin plated reducer
Documentation & Downloads
Specifications
Additional
- Voltage - Maximum
- 35000 V
- Temperature Rating
- 194 F
- Overall Length
- 5.57 in
- Dimension - Outside Diameter
- 1.46 in
- Material
- Aluminum
- Connector Type
- Reducer
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- Color Code
- Yellow
Rating - KVA35 kV
Wire Size Range700-750 kcmil to 350 kcmil
Dimension - Strip Length2-5/16 in
Dimension - B Length2.25 in
Plating TypeTin - Electro Plated
Certification - UL ListedYes
Certification - ETLNo
Certification - cULusNo
Industry Standard(s)UL468A-468B
Trade NameHYREDUCERTM
