Blackburn

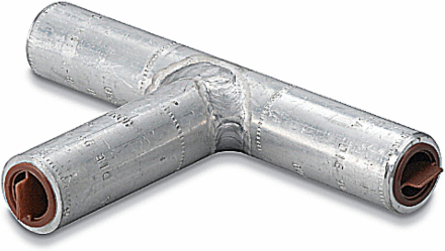

Blackburn AT 350-350 Aluminum Tees, Size 6-5/8 Inch Length, Tap 3-1/8 Inch, 350 Conductor Range

Aluminum Tees, Size 6-5/8 Inch Length, Tap 3-1/8 Inch, 350 Conductor Range
  • MPN: AT 350-350
  • PPN: T-B-AT 350-350

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$455.15/ EA

Description

Aluminum Tees, main 350, tap 350

Features

  • Made of Aluminum for High Strength and High Conductivity.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • All Tees Marked with Conductor Sizes and Die References for Easy Identification
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Made from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. All Tees marked with conductor sizes and die reference for easy identification.
Standard
ANSI C119.4
Conductor Range
350
IGCC4668 Wire or cable compression connector
TypeAluminum Tees
ApplicationFor Aluminum and Copper Connections
SizeLength 6-5/8 inches, Tap 3-1/8 inch
MaterialAluminum

Packaging

Outer Quantity
3
Weight Uom
0.58 lbs. Each
Outer Dimensions (inches)1x1x1
