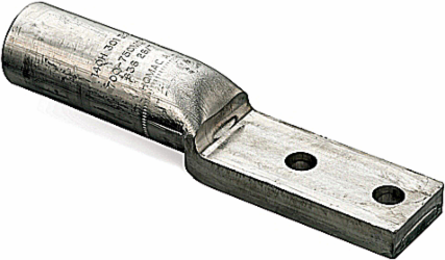

Blackburn AL 300 NTN Aluminum Two-Hole NEMA Lugs 6-9/16 Inch Length, Tin-Plated, Dual-Rated
Blackburn AL 300 NTN Aluminum Two-Hole NEMA Lugs 6-9/16 Inch Length, Tin-Plated, Dual-Rated
- MPN: AL 300 NTN
- PPN: T-B-AL 300 NTN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$59.33/ EA
Description
Aluminum Tin-Plated Two-Hole NEMA Lugs - straight lug, concentric 300, 266.8 compact 350, ACSR 266.8 (18/1), installing dies TH,87H,251,470,1,12A
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.3 lbs. Each
Outer Dimensions (inches)7.7x6.6x7.3
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
- Standard
- ANSI C119.4
- Conductor Range
- 300
- Finish
- Tin-Plated
IGCC4668 Wire or cable compression connector
TypeAluminum Two-Hole NEMA Lugs
ApplicationGeneral purpose lugs for Aluminum and Copper terminations.
SizeLength 6-9/16 inches
MaterialAluminum
