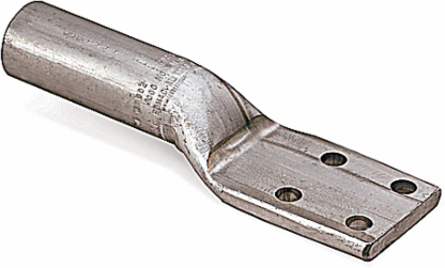

Blackburn AL 14136 X Aluminum Four-Hole NEMA Lugs, Length 13-3/4 Inch, Dual-Rated for Copper & Aluminum
- MPN: AL 14136 X
- UPC: 783786693290
- PPN: T-B-AL 14136 X
CAD
$323.13
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Four-Hole NEMA Lugs, concentric 1033.5-1300, ACSR 900-1113, installing dies 161,727,352
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
Packaging
| Outer Quantity | 5 |
|---|---|
| Weight Uom | 2.26 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 1033.5 - 1300 AAC, 900 - 1113 ACSR |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Aluminum Four-Hole NEMA Lugs |
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Size | Length 13-3/4 inches |
| Material | Aluminum |
