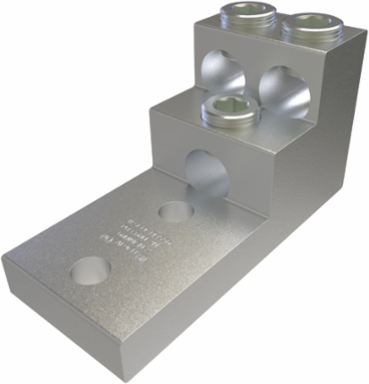

ILSCO PB3-600-2N Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
- MPN: PB3-600-2N
- UPC: 783669180725
- PPN: ILC-PB3-600-2N
CAD
$214.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3 in
- Weight
- 1.799 lbs
Length5.687 in
Width2.469 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.625
- Drive Size Main
- 1/2
- Height BX (IN)
- 3.125
- Mounting Hole Diameter (IN)
- 0.563
- Mounting Hole Spacing (IN)
- 1.75
- Tang Length (IN)
- 3.125
- Tang Thickness (IN)
- 0.75
- Tang Width (IN)
- 2.469
- Weight BX (LB)
- 1.9329
Dimension G (mm)15.875
Drive Type MainInternal Hex
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.3002
Mounting Hole Spacing (mm)44.45
Tang Length (mm)79.375
Tang Thickness (mm)19.05
Tang Width (mm)62.7126
Width BX (IN)3.875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 2
- Number of Ports / Wireways
- 3
Contains DE-OX®No
Number of Conductors3
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)600 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366918072
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
- Wire Binding Screw Size
- 15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
