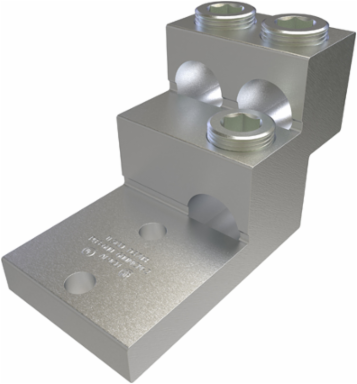

Ilsco PB3-600 Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Ilsco PB3-600 Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
- MPN: PB3-600
- UPC: 0783669180718
- PPN: ILC-PB3-600
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$188.66/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.375
- Drive Size Main
- 1/2
- Height BX (IN)
- 3.125
- Mounting Hole Diameter (IN)
- 0.406
- Mounting Hole Spacing (IN)
- 1.375
- Tang Length (IN)
- 2.35
- Tang Thickness (IN)
- 0.625
- Tang Width (IN)
- 2.469
- Weight BX (LB)
- 1.3676
Dimension G (mm)9.525
Drive Type MainInternal Hex
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.3124
Mounting Hole Spacing (mm)34.925
Tang Length (mm)59.69
Tang Thickness (mm)15.875
Tang Width (mm)62.7126
Width BX (IN)3.875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 2
- Number of Ports / Wireways
- 3
Contains DE-OX®No
Number of Conductors3
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)600 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366918071
Specifications
- Height
- 2.96 in
- Weight
- 1.234 lbs
Length4.91 in
Width2.469 in
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
- Wire Binding Screw Size
- 15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
