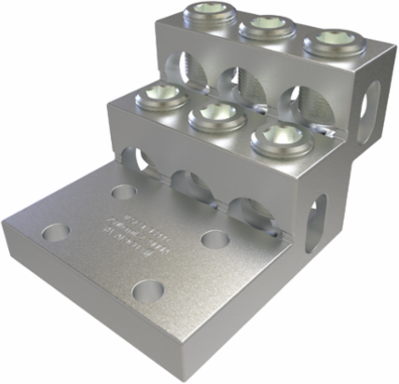

ILSCO PBHD6-750 Aluminum Panelboard Lug, Heavy Duty, Dual Rated, Conductor Range 750-2, 6 Ports, 4 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
- MPN: PBHD6-750
- UPC: 783669001242
- PPN: ILC-PBHD6-750
CAD
$416.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Panelboard Lug, Heavy Duty, Dual Rated, Conductor Range 750-2, 6 Ports, 4 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.96 in | 75.184 mm
- Weight
- 1.504 lbs
Length5.005 in | 127.127 mm
Width3.84 in | 97.536 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.38
- Drive Size Main
- 1/2
- Height BX (IN)
- 3.125
- Length (mm)
- 127.127
- Mounting Hole Diameter (IN)
- 0.406
- Mounting Hole Spacing (IN)
- 1.38
- Tang Length (IN)
- 2.35
- Tang Thickness (IN)
- 0.75
- Tang Width (IN)
- 3.84
- Weight BX (LB)
- 1.6379
- Width (mm)
- 97.536
Dimension G (mm)9.652
Drive Type MainInternal Hex
Height (mm)75.184
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.3124
Mounting Hole Spacing (mm)35.052
Tang Length (mm)59.69
Tang Thickness (mm)19.05
Tang Width (mm)97.536
Width BX (IN)3.875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Recognized
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 4
- Number of Ports / Wireways
- 6
Contains DE-OX®No
Number of Conductors6
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 750 kcmil - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 5
Dual RatedYes
UPC Code78366900124
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
- Wire Binding Screw Size
- 15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque620
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
