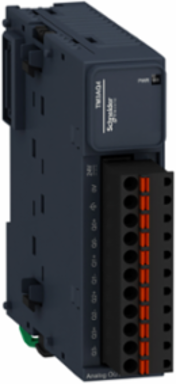

Schneider Electric TM3AQ4G Modicon TM3 Analog Output Module 4 Outputs 24V DC IP20
- MPN: TM3AQ4G
- PPN: SCH-TM3AQ4G
- UNSPSC: 32151705
CAD
$430.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Modicon TM3 Analog Output Module 4 Outputs 24V DC IP20
Features
- Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Large choice of I/O system to enhance the capabilities of Modicon M2xx plc
- Intuitive machine programming with EcoStruxure Machine Expert
- Modicon TM3 system allows to Modicon M2xx plc flexible and customizable I/O extension
- TM3 Bus couplers allow Modicon plcs to distribute I/Os on EtherNet/IP, sercos or CANopen
- Modicon TM3 is an EcoStruxure Machine I/O system
- Modicon TM3 expansion modules are designed with a simple interlocking assembly mechanism
- The TM3 bus transfers data and power supply between I/O modules and the PLC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Japan, United States |
|---|---|
| Depth | 70 mm |
| Weight | 320 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cross Talk | <= 1 LSB, <= 1 LSB |
| Typical Current Consumption | 40 mA 5 V DC no load50 mA 5 V DC full load, 50 mA 24 V DC no load, 125 mA 24 V DC full load |
| Non Linearity | +/- 0.2 %FS, +/- 0.2 %FS |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5102658984244621, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 14 kg CO2 eq., 13.788566778647954 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Conversion Time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Electromagnetic Emission | radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011 |
| Immunity To Microbreaks | 10 ms |
| Load Impedance Ohmic | 1 kOhm voltage300 Ohm current |
| Local Signalling | 1 LED green PWR |
| Marking | CE |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Returnability | No |
| Software Version | v6.1 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 60 kg CO2 eq. |
| Vibration Resistance | 3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Database Version | 2023-02 |
| Height Nominal | 90 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| Functional Unit Description | To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 3 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Certificate Agency | CE, UKCA, RCM, EAC, cULus, cULus HazLoc |
| Carbon Footprint Of The Distribution Phase A4 | 0.04765490592624833, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.00561993731636851 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 46 kg CO2 eq., 45.53523314102323 |
| Local Publishable Date | 2025-11-25 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | false |
| Electrical Connection | 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs and supply |
| Front Installation Possible | false |
| Insulation | between output and supply 1500 V ACbetween output and internal logic 500 V AC |
| Load Type | resistive |
| Lsb Value | 2.44 mV, 0...10 V4.88 mV, - 10...10 V4.88 µA, 0...20 mA3.91 µA, 4...20 mA |
| Network Type | DC |
| Product Or Component Type | analog output module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Repeat Accuracy | +/- 0.4 %FS+/- 0.4 %FS |
| Shock Resistance | 15 gn 11 ms |
| Stabilisation Time | 1 ms |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/- 0.01 %FS/°C+/- 0.01 %FS/°C |
| Type Of Cable | twisted shielded pairs cable <30 m output |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | false |
| Data Source | extrapolated product |
| Width Nominal | 23.6 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Radio Standard Wi Fi 802.11 | false |
| Supporting Protocol For Data Highway | false |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 59.887340661338264 |
| Circularity Profile | ENVEOLI1402009EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 10-95 % without condensation |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1402009EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | analog output module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|---|
| ETIM 10 | EC001596 |
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Resolution | 12 bits, 11 bits + sign |
|---|---|
| Analogue Output Number | 4 |
| Analogue Output Type | current 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V |
|---|---|
| Output Ripple | 20 mV |
Input Attributes
| Analogue Input Resolution | 12 bits, 11 bits + sign |
|---|
